Kia Carens: Interior features / Cargo security screen

Kia Carens RP (2013-2018) Owners Manual / Features of your vehicle / Interior features / Cargo security screen

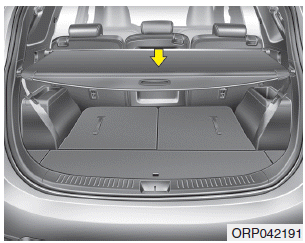

Use the cargo security screen to hide items stored in the cargo area.

Luggage net (holder)

To keep items from shifting in the cargo area, you can use the four holders located in the cargo area to attach the luggage net. If necessary, we recommend that you contact an authorized Kia dealer ...

To use the cargo security screen

1. Pull the cargo security screen towards the rear of the vehicle by the handle (1). 2. Insert the guide pin into the guide (2). ✽ NOTICE Pull out the cargo security screen with the handle in the ...
