Kia Carens: Cargo security screen / To remove the cargo security screen

Kia Carens RP (2013-2018) Owners Manual / Features of your vehicle / Interior features / Cargo security screen / To remove the cargo security screen

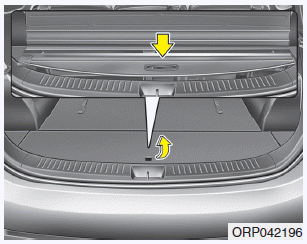

1. Push the guide pin inward.

2. While pushing the guide pin, pull out the cargo security screen.

3. Open the luggage tray and keep the cargo security screen in the tray.

To use the cargo security screen
1. Pull the cargo security screen towards the rear of the vehicle by the handle (1). 2. Insert the guide pin into the guide (2). ✽ NOTICE Pull out the cargo security screen with the handle in the ...

To remove the cargo security screen from the luggage tray
1. Pull up the screen board. 2. Push in the guide pin. 3. While pushing the guide pin, pull out the cargo security screen. WARNING Do not place objects on the cargo security screen. Such objects ma ...
