Kia Carens: Cargo security screen / To remove the cargo security screen from the luggage tray

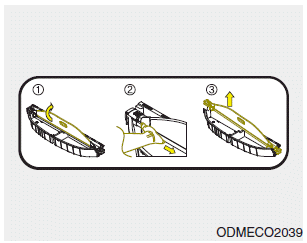

1. Pull up the screen board.
2. Push in the guide pin.
3. While pushing the guide pin, pull out the cargo security screen.
WARNING
- Do not place objects on the cargo security screen. Such objects may be
thrown about inside the vehicle and possibly injure vehicle occupants during
an accident or when braking.
- Never allow anyone to ride in the luggage compartment. It is designed
for luggage only.
- Maintain the balance of the vehicle and locate the weight as forward
as possible.
CAUTION
Since the cargo security screen may be damaged or malformed, do not put luggage
on it when it is used.
1. Push the guide pin inward.
2. While pushing the guide pin, pull out the cargo security screen.
3. Open the luggage tray and keep the cargo security screen in the tray. ...
