Component Location

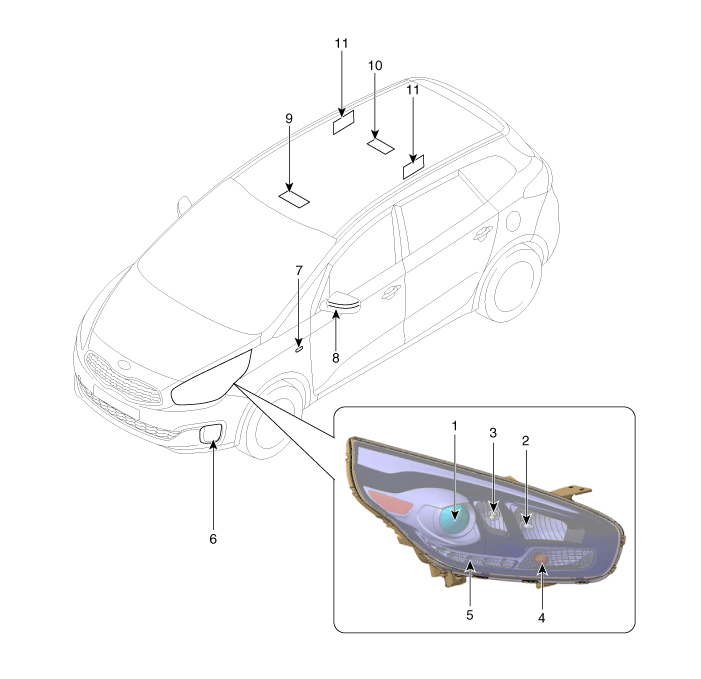

1. Head lamp (Low)
2. Head lamp (High)
3. Static bending lamp
4. Turn signal lamp
5. Position lamp & DRL
6. Front fog lamp (Option)
7. Side repeater lamp
8. Turn signal lamp (Door mirror) (Option)
9. Over head console lamp
10. Room lamp
11. Personal lamp (Option)

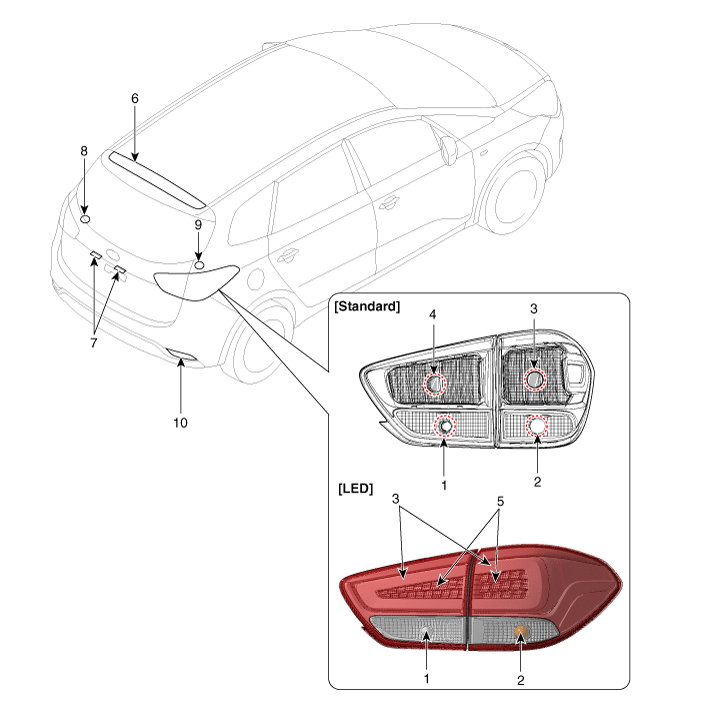

1. Back up lamp
2. Turn signal lamp
3. Tail/ Stop lamp
4. Tail lamp
5. Stop lamp
6. High mounting stop lamp
7. License plate lamp
8. Luggage lamp
9. Luggage lamp (portable)
10. Fog lamp

Specifications
Specifications Items Bulb Type Bulb Wattage (W) Front Head lamp (STD) Low H7L ...

Troubleshooting
Troubleshooting Symptom Possible cause Remedy One lamp does not light (all exterior) Bulb burned out ...
