Kia Carens: Cargo security screen / To use the cargo security screen
.png)

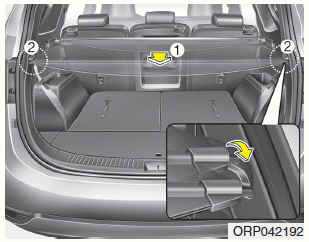

1. Pull the cargo security screen towards the rear of the vehicle by the handle
(1).
2. Insert the guide pin into the guide (2).
✽ NOTICE
Pull out the cargo security screen with the handle in the center to prevent
the guide pin from falling out of the guide.
When the cargo security screen is not in use:
1. Pull the cargo security screen rear and down to release it from the guides.
2. The cargo security screen will automatically slide back in.
✽ NOTICE
The cargo security screen may not automatically slide back in if the cargo
security screen is not fully pulled out. Fully pull it out and then let go.
Use the cargo security screen to hide items stored in the cargo area. ...
1. Push the guide pin inward.
2. While pushing the guide pin, pull out the cargo security screen.
3. Open the luggage tray and keep the cargo security screen in the tray. ...
