Kia Carens: Fuses And Relays / Relay Box (Passenger Compartment) Repair procedures
Kia Carens RP (2013-2018) Service Manual / Body Electrical System / Fuses And Relays / Relay Box (Passenger Compartment) Repair procedures
| Fuse Inspection |
| 1. |
Be sure there is no play in the fuse holders, and that the fuses are
held securely.
|
| 2. |
Are the fuse capacities for each circuit correct?
|
| 3. |
Are there any blown fuses?
If a fuse is to be replaced, be sure to use a new fuse of the same capacity.
Always determine why the fuse blew first and completely eliminate the
problem before installing a new fuse.
|
| Inspection |
| 1. |
The SJB can be diagnosed by using the GDS. The SJB communicates with
the GDS which then displays inputs and outputs along with codes.
|
| 2. |

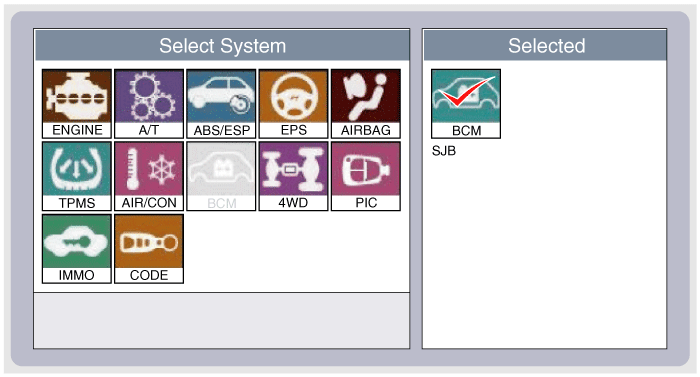

To diagnose the SJB function, select the vehicle model, BCM and SJB.
|
| 3. |

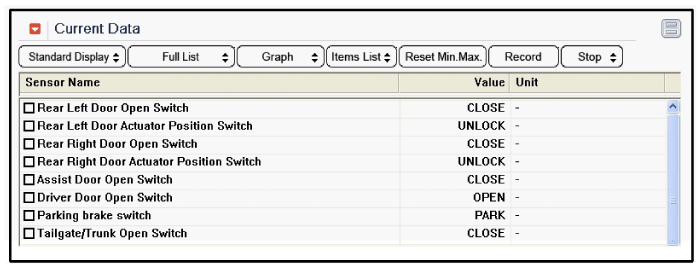

To consult the present input/out value of SJB, "Current DATA". It provides
information of SJB input/output conditions.
|
| 4. |

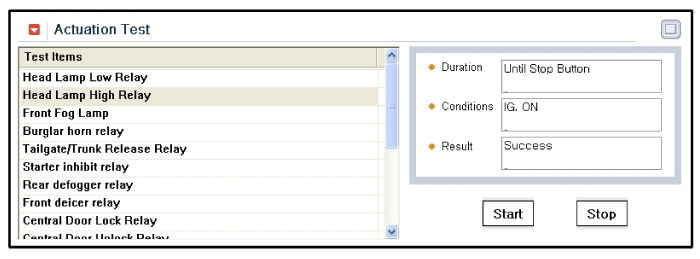

To perform functional test on SJB outputs, select "Actuation Test"
|
| Removal |
Passenger Compartment Junction Box (SJB)
| 1. |
Disconnect the negative(-) battery terminal.
|
| 2. |
Remove the crash pad lower panel.
(Refer to Body - "Crash Pad Lower Panel")
|
| 3. |
Disconnect the connectors from the fuse side of the smart junction box.
|
| 4. |
Remove the smart junction box (A) after loosening the mounting nuts.
|
| 5. |
Disconnect the connectors from the back side of the smart junction box.
|
| Installation |
| 1. |
Install the smart junction box.
|
| 2. |
Install the crash pad lower panel.
|
| 3. |
Check that all system operates normally.
|
