Component Location

[Second row seat assembly]

(Except Europe and Australia)

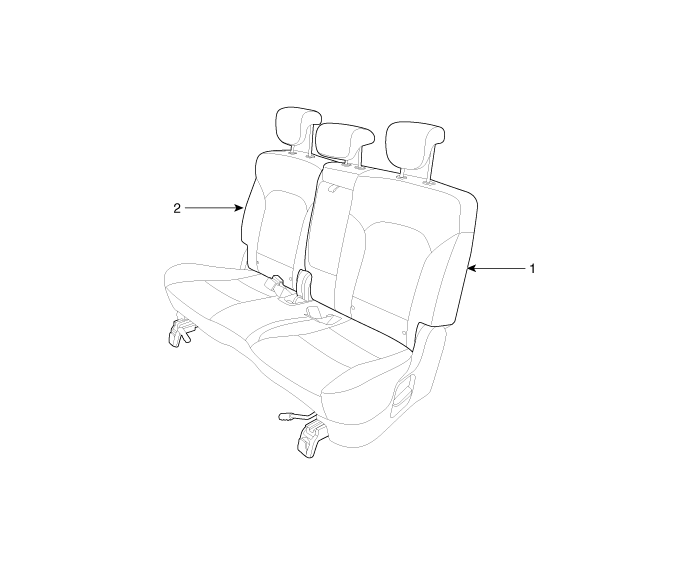

[5-seat vehicle]

1. Rear seat back cover [LH]

2. Rear seat back cover [RH]

(Except Europe and Australia)

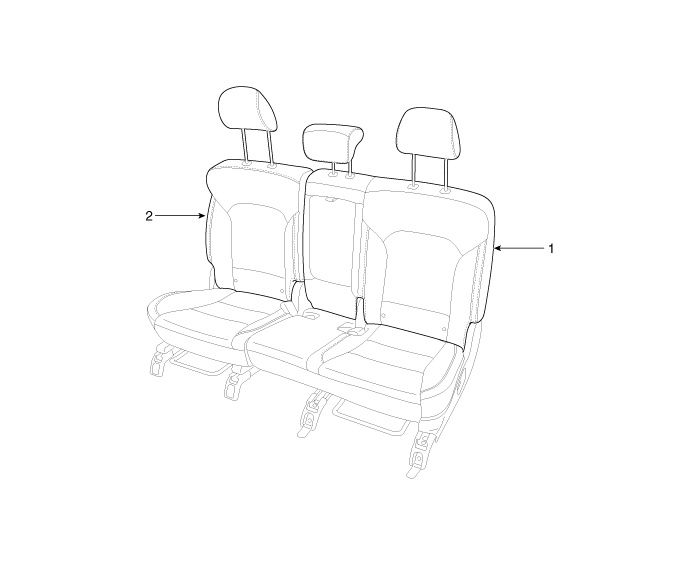

[7-seat vehicle]

1. Rear seat back cover [LH]

2. Rear seat back cover [RH]

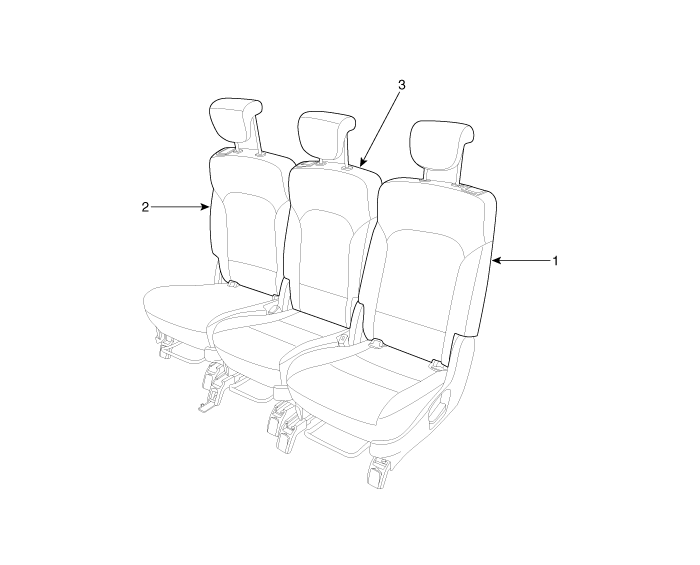

(For Europe and Australia)

[5/7-seat vehicle]

1. Rear seat back cover [LH]
2. Rear seat back cover [RH]

3. Rear seat back cover [Center]

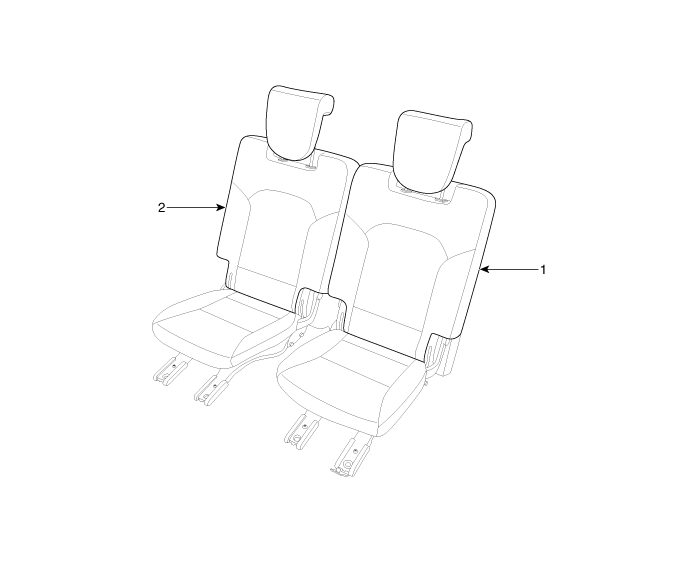

[Third row seat assembly]

1. Rear seat back cover [LH]

2. Rear seat back cover [RH]

Rear Seat Assembly Repair procedures

Replacement [Second row seat assembly] (Except Europe and Australia) [5-seat vehicle] 1. Push the second row seat assembly (A) towards the front of the ve ...

Rear Seat Back Cover Repair procedures

Replacement [Second row seat assembly] (Except Europe and Australia) [5-seat vehicle] (LH) ...
