Kia Carens: Features of your vehicle / Manual climate control system

Kia Carens RP (2013-2018) Owners Manual / Features of your vehicle / Manual climate control system

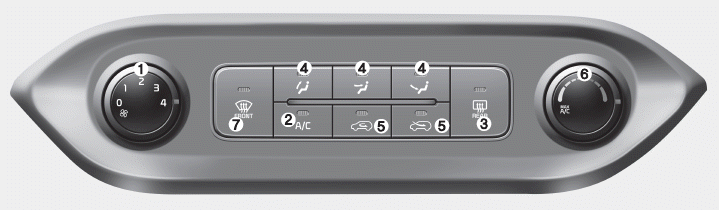

1. Fan speed control knob
2. Air conditioning button
3. Rear window defroster button
4. Mode selection button
5. Air intake control button
6. Temperature control knob
7. Front windshield defroster button

CAUTION

Operating the blower when the ignition switch is in the ON position could cause the battery to discharge. Operate the blower when the engine is running.

Rear window defroster

The defroster heats the window to remove frost, fog and thin ice from the interior and exterior of the rear window, while engine is running. To activate the rear window defroster, press the rear w ...

Heating and air conditioning

1.Start the engine. 2.Set the mode to the desired position. To improve the effectiveness of heating and cooling: - Heating: - Cooling: 3.Set the temperature control to the desired position. 4.Set the ...
