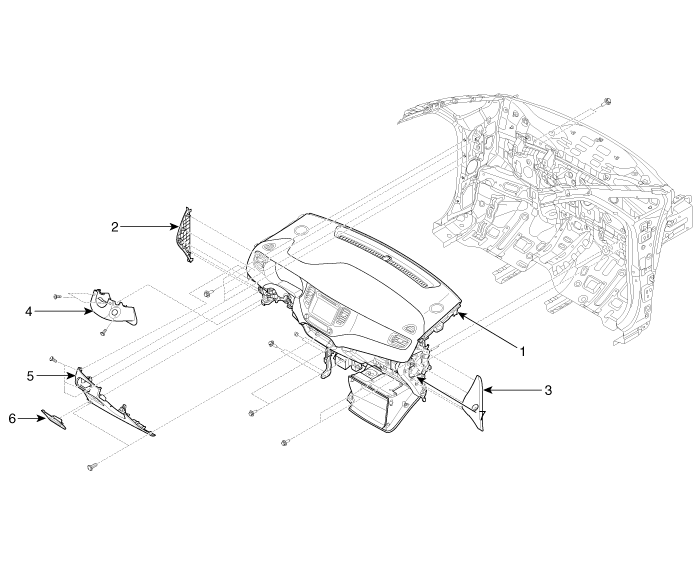

Components

1. Main crash pad assembly
2. Crash pad side cover [LH]
3. Crash pad side cover [RH]
4. Steering column shroud lower panel
5. Crash pad lower panel
6. Fuse box cover
7. Glove box
