Kia Carens: Manual climate control system / Climate control air filter

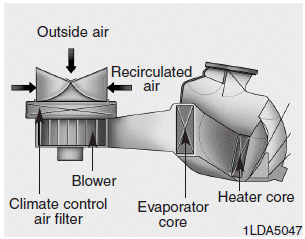

The climate control air filter installed behind the glove box filters the dust
or other pollutants that come into the vehicle from the outside through the heating
and air conditioning system. If dust or other pollutants accumulate in the filter
over a period of time, the air flow from the air vents may decrease, resulting in
moisture accumulation on the inside of the windshield even when the outside (fresh)
air position is selected. If this happens, we recommend that the climate control
air filter be replaced by an authorized Kia dealer.
✽ NOTICE
- Replace the filter according to the Maintenance Schedule. If the vehicle
is being driven in severe conditions such as dusty, rough roads, more frequent
climate control air filter inspections and changes are required.
- When the air flow rate suddenly decreases, we recommend that the system
be checked by an authorized Kia dealer.
