Kia Carens: Outside rearview mirror / Folding the outside rearview mirror

Kia Carens RP (2013-2018) Owners Manual / Features of your vehicle / Mirrors / Outside rearview mirror / Folding the outside rearview mirror

Manual type

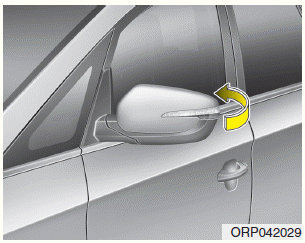

To fold outside rearview mirror, grasp the housing of mirror and then fold it toward the rear of the vehicle.

Electric type

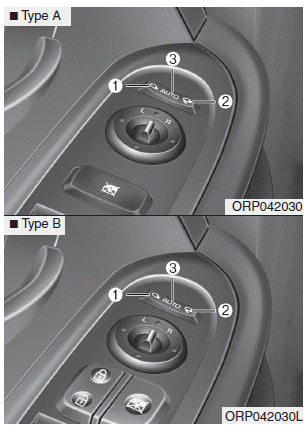

The outside rearview mirror can be folded or unfolded by pressing the switch as below.

Left (1) : The mirror will unfold.

Right (2) : The mirror will fold.

Center (AUTO, 3) :

The mirror will fold or unfold automatically as follows:

CAUTION

The electric type outside rearview mirror operates even though the ignition switch is in the OFF position. However, to prevent unnecessary battery discharge, do not adjust the mirrors longer than necessary while the engine is not running.

CAUTION

In case it is an electric type outside rearview mirror, don’t fold it by hand. It could cause motor failure.
