Kia Carens: Features of your vehicle / Instrument cluster

Kia Carens RP (2013-2018) Owners Manual / Features of your vehicle / Instrument cluster

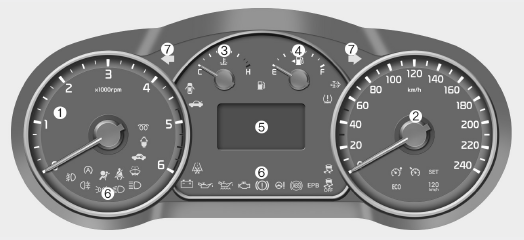

■ Type A

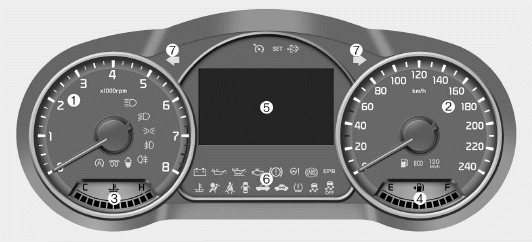

■ Type B

1. Tachometer
2. Speedometer
3. Engine coolant temperature gauge
4. Fuel gauge
5. LCD display
6.Warning and indicator lights (if equipped)
7. Turn signal indicator lights

Folding the outside rearview mirror
Manual type To fold outside rearview mirror, grasp the housing of mirror and then fold it toward the rear of the vehicle. Electric type The outside rearview mirror can be folded or unfolded by pres ...

Instrument Cluster Control
WARNING Never adjust the instrument cluster while driving. This could result in loss of control and lead to an accident that may cause death, serious injury, or property damage. ...
