Kia Carens: Audio / Troubleshooting

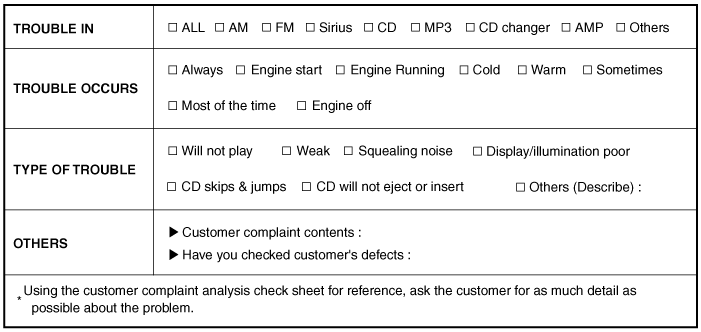

Customer Complaint Analysis
Check Sheet |
![](images/troubleshooting-1373/550/shmbe9386n.gif)

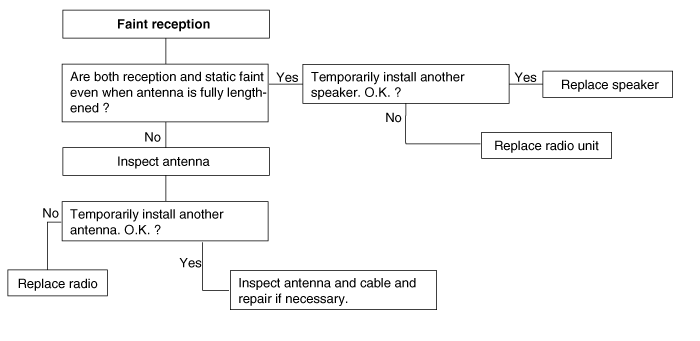

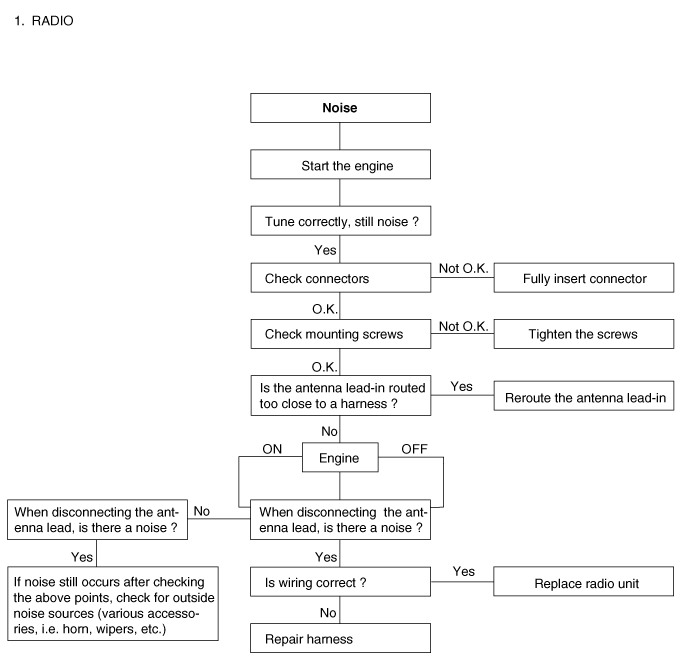

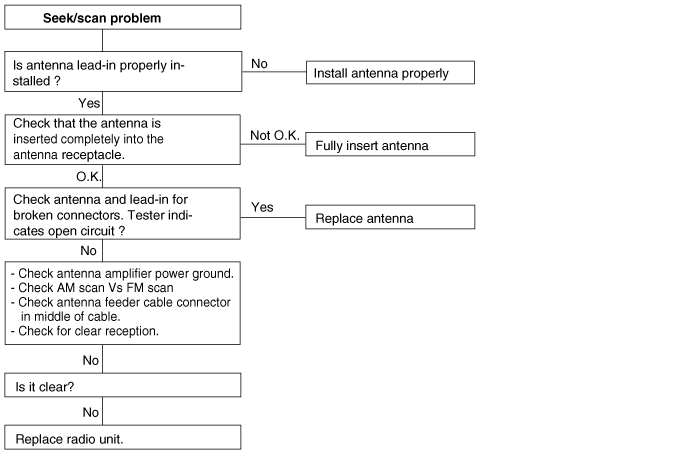

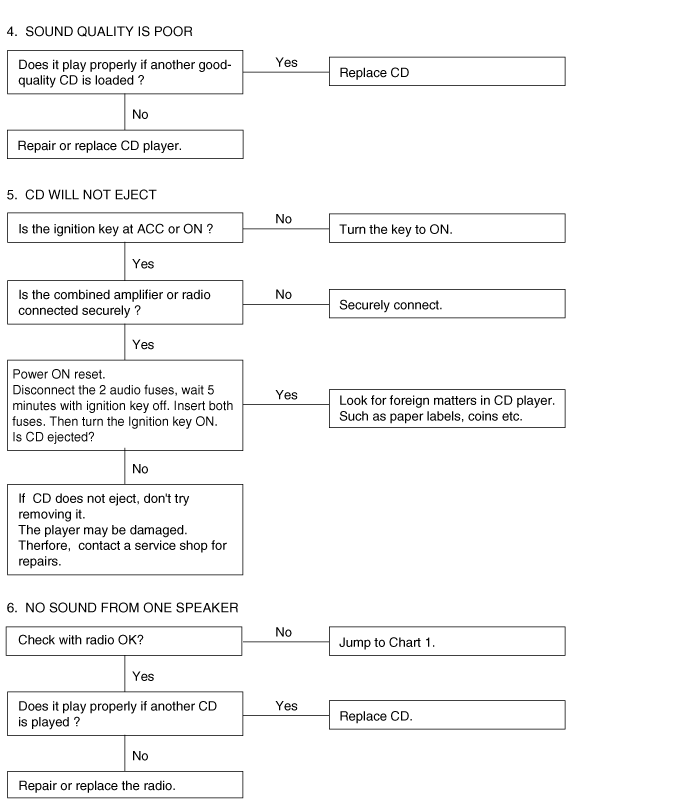

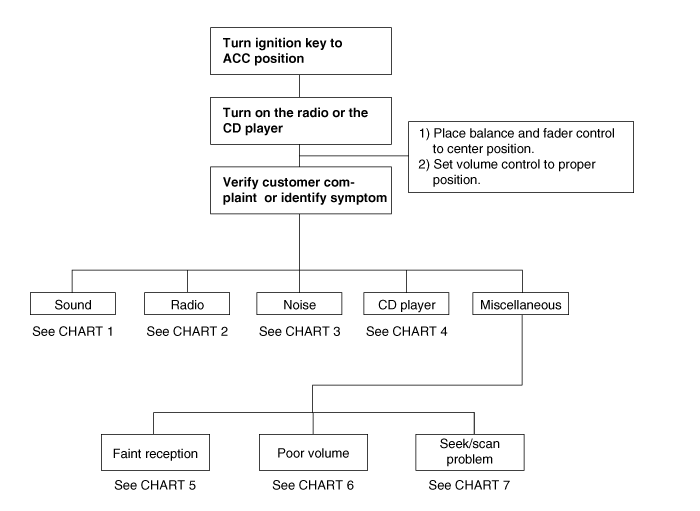

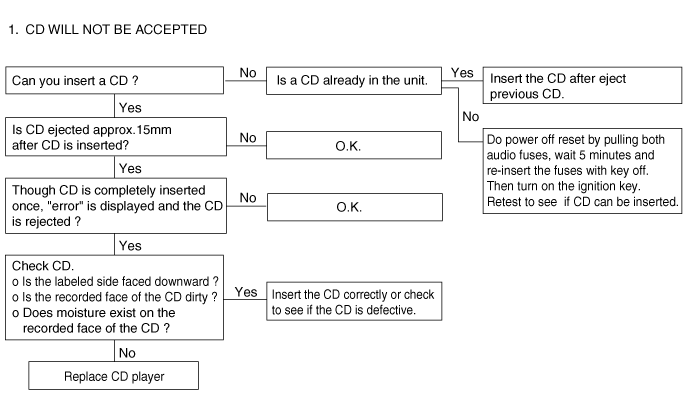

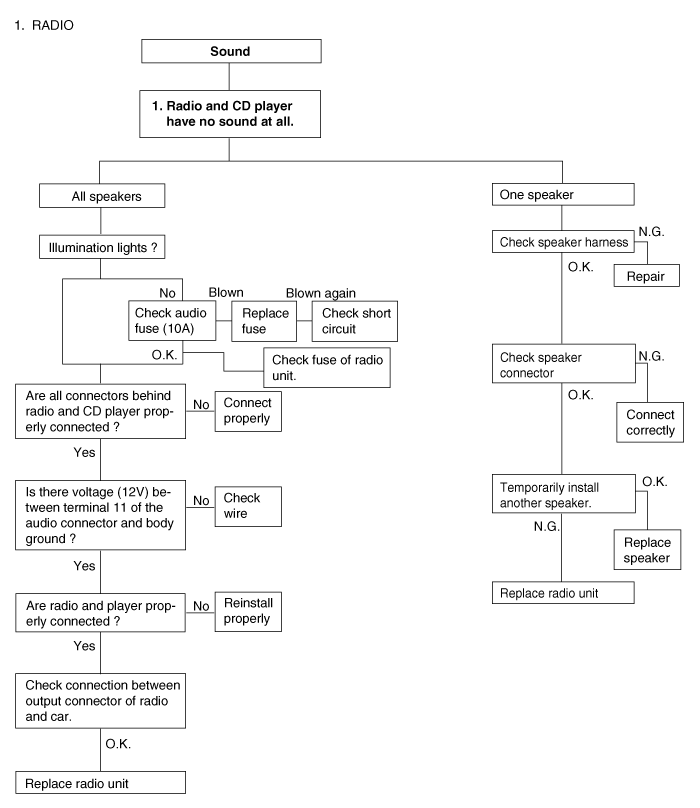

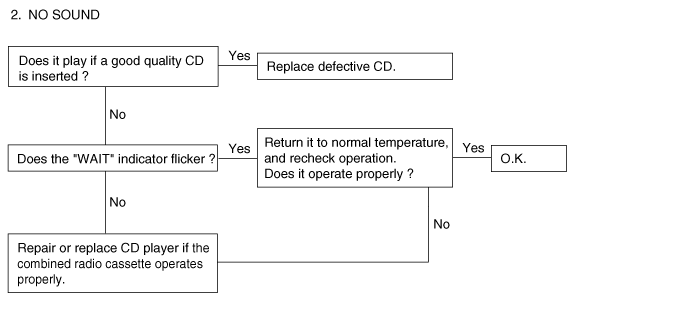

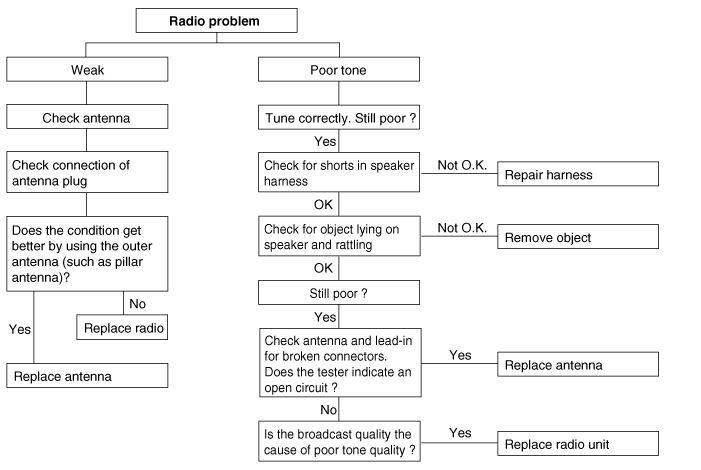

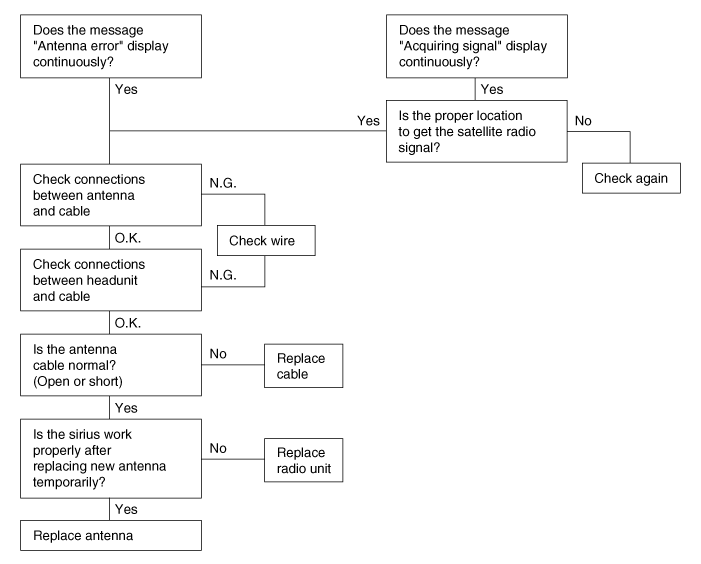

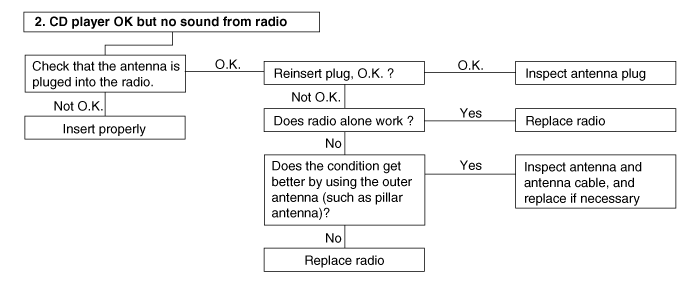

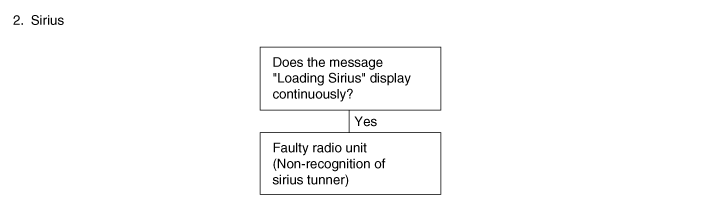

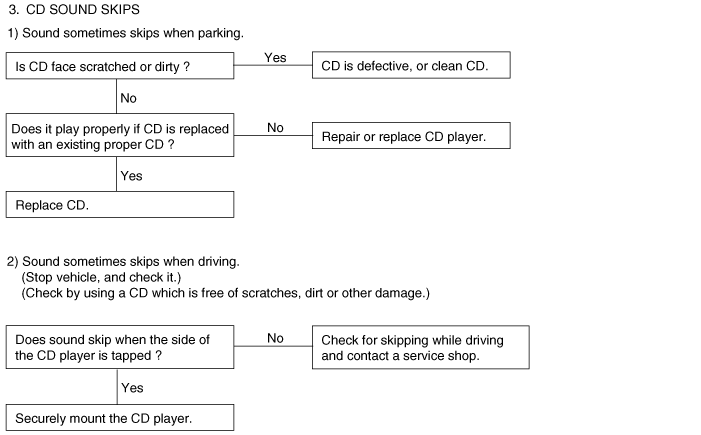

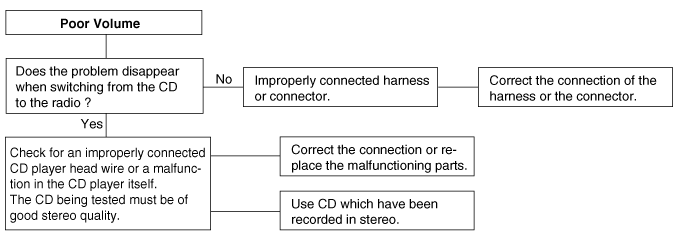

There are six areas where a problem can occur: wiring harness, the radio, the
CD player, and speaker. Troubleshooting enables you to confine the problem to
a particular area.
![](images/troubleshooting-1373/550/senbe7047l.gif)
![](images/troubleshooting-1373/550/shmbe9389n.gif)
![](images/troubleshooting-1373/550/shmbe9380n.gif)
![](images/troubleshooting-1373/550/shmbe9387n.gif)
![](images/troubleshooting-1373/550/shmbe9388n.gif)
![](images/troubleshooting-1373/550/ltif001d.gif)
![](images/troubleshooting-1373/550/ltif001f.gif)
![](images/troubleshooting-1373/550/ltif001h.gif)
![](images/troubleshooting-1373/550/ltif001i.gif)
![](images/troubleshooting-1373/550/ltif001j.gif)
![](images/troubleshooting-1373/550/ltif001k.gif)
![](images/troubleshooting-1373/550/ltif001l.gif)
![](images/troubleshooting-1373/550/senbe7039l.gif)
![](images/troubleshooting-1373/550/ltif001n.gif)
