Kia Carens: Audio / Components and components location

Kia Carens RP (2013-2018) Service Manual / Body Electrical System / Audio / Components and components location

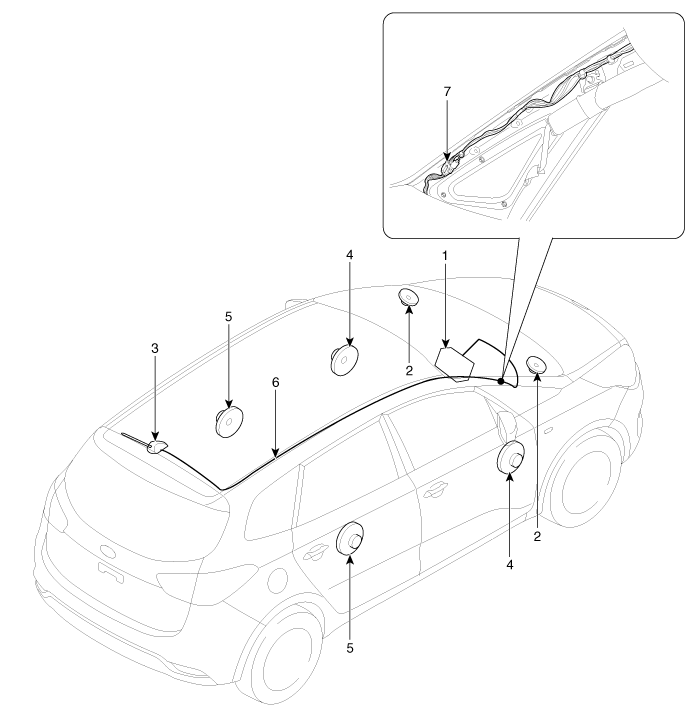

Component Location

1. Audio unit
2. Tweeter speaker
3. Roof antenna
4. Front door speaker

5. Rear door speaker
6. Antenna feeder cable
7. Antenna cable connector
