Kia Carens: Audio / Audio Unit Components and components location

Kia Carens RP (2013-2018) Service Manual / Body Electrical System / Audio / Audio Unit Components and components location

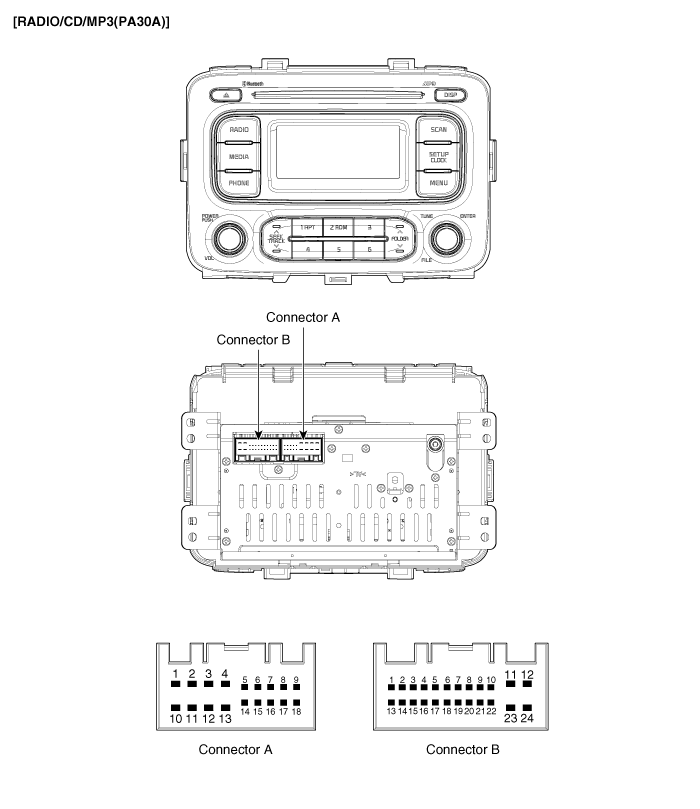

Components

Connector Pin Information
No.
Connector A
Connector B
1
Rear left speaker (+)
-
2
Front left speaker (+)
-
3
Front right speaker (+)
-
4
Rear right speaker (+)
Steering wheel remote
5
-
-
6
-
USB D (+)
7
-
USB/iPod VDD
8
Illumination (+)
AUX R IN
9
Detent
AUX GND
10
Rear left speaker (-)
Mic (+) B/T
11
Front left speaker (-)
ACC
12
Front right speaker (-)
B+
13
Rear right speaker (-)
-
14
-
-
15
-
-
16
-
Speed
17
Illumination (-)
Remote GND
18
Remote antenna
USB D (-)
19

USB/iPod GND
20
AUX DETECT
21
AUX L IN
22
Mic (-) B/T
23
-
24
Power GND

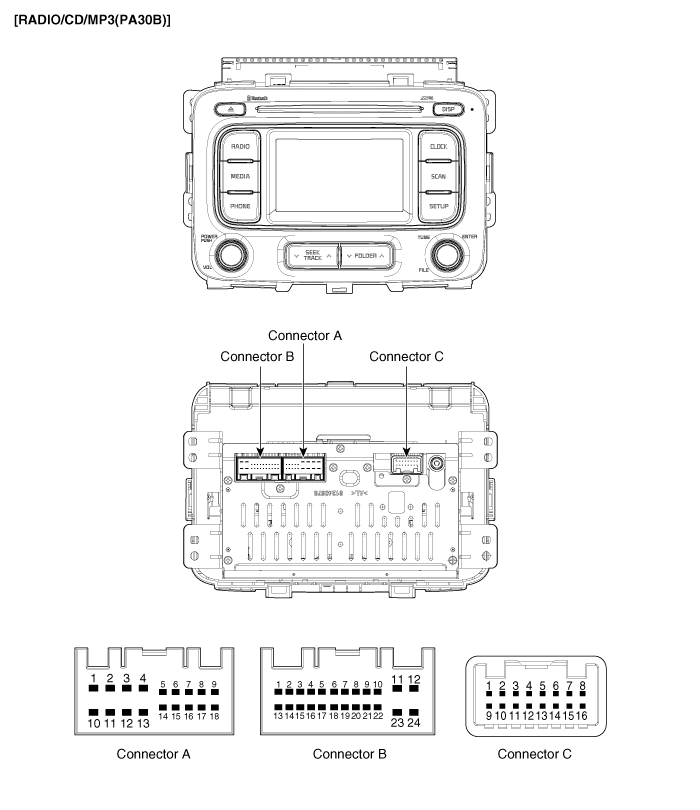

Connector Pin Information
No.
Connector A
Connector B
Connector C
1
Rear left speaker (+)
CAN High
-
2
Front left speaker (+)
-
-
3
Front right speaker (+)
-
Camera ground
4
Rear right speaker (+)
Steering wheel remote
Camera video input
5
-
-
-
6
-
USB D (+)
-
7
-
USB/iPod VDD
-
8
Illumination (+)
AUX R IN
-
9
-
AUX GND
-
10
Rear left speaker (-)
Mic (+) B/T
Camera battery (+)
11
Front left speaker (-)
ACC
Parking ground
12
Front right speaker (-)
B+
R position
13
Rear right speaker (-)
CAN Low
-
14
-
-
-
15
-
-
-
16
-
Speed
-
17
Illumination (-)
Remote GND

18
Remote antenna
USB D (-)
19

USB/iPod GND
20
AUX DETECT
21
AUX L IN
22
Mic (-) B/T
23
-
24
Power GND

Troubleshooting
Troubleshooting Customer Complaint Analysis Check Sheet There are six areas where a problem can occur: wiring harness, the radio, the CD player, and speaker. Tr ...

Audio Unit Repair procedures
Removal 1. Disconnect the negative (-) battery terminal. 2. Remove the center garnish (A). 3. Dis ...
