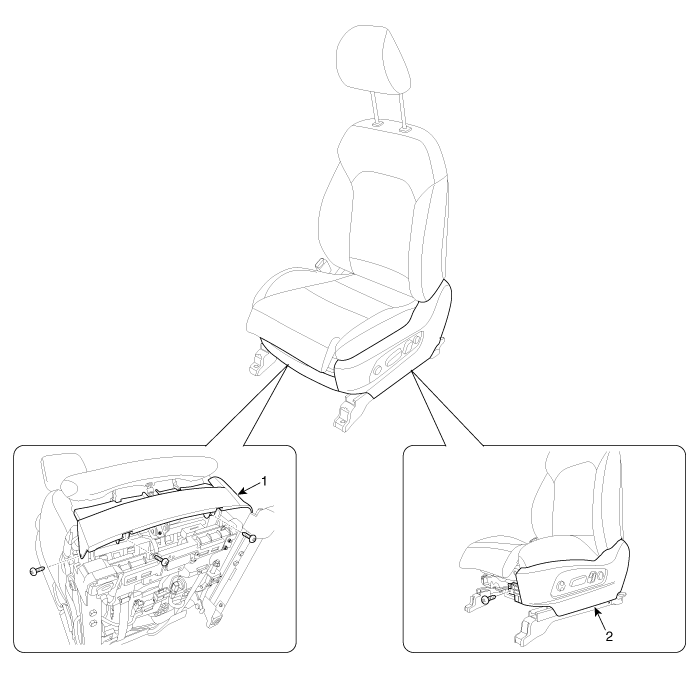

Component Location

1. Front seat shield front cover

2. Front seat shield outer cover

Front Seat Assembly Repair procedures

Replacement 1. After loosening the mounting bolts, remove the front seat assembly (A). Tightening torque : 34.3 ~ 53.9N.m ( ...

Front Seat Shield Outer Cover Repair procedures

Replacement [Front seat shield front cover] • Put on gloves to protect y ...
