Kia Carens: Heating and air conditioning / Temperature control

Kia Carens RP (2013-2018) Owners Manual / Features of your vehicle / Manual climate control system / Heating and air conditioning / Temperature control

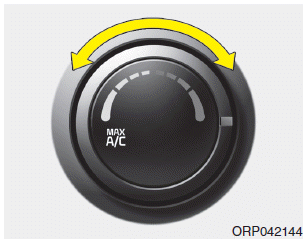

The temperature control knob allows you to control the temperature of the airflow in the vehicle.

To change the temperature:

Turn the knob to the right to increase temperature.
Turn the knob to the left to decrease temperature.
