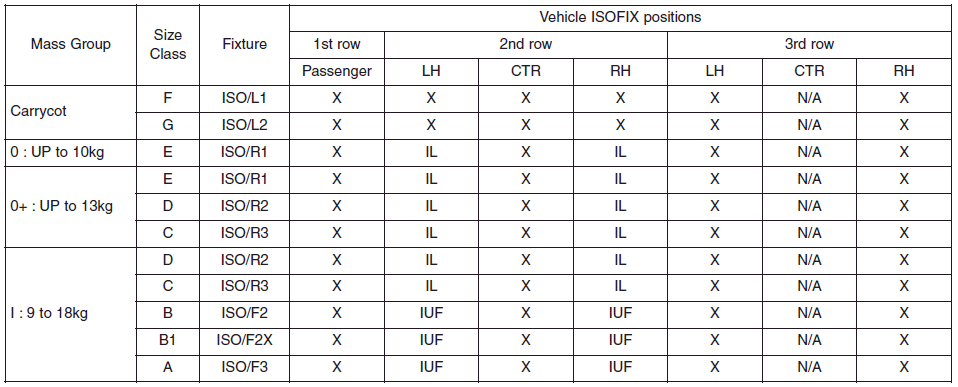

Kia Carens: Using a child restraint system / Suitability of each seating position for ISOFIX child restraint systems according to ECE regulations

Kia Carens RP (2013-2018) Owners Manual / Safety features of your vehicle / Child restraint system / Using a child restraint system / Suitability of each seating position for ISOFIX child restraint systems according to ECE regulations

IUF = Suitable for ISOFIX forward child restraints systems of universal category approved for use in the mass group.

IL = Suitable for particular ISOFIX child restraints systems (CRS) approved for this vehicle type according to ECE R44. These ISOFIX CRS are those of the "specific vehicle", "restricted" or "semi-universal" categories.

X = ISOFIX position not suitable for ISOFIX child restraint system in this mass group and/or this size class.
