Kia Carens: Power Windows / Power Window Switch Schematic diagrams

Kia Carens RP (2013-2018) Service Manual / Body Electrical System / Power Windows / Power Window Switch Schematic diagrams

Circuit Diagram

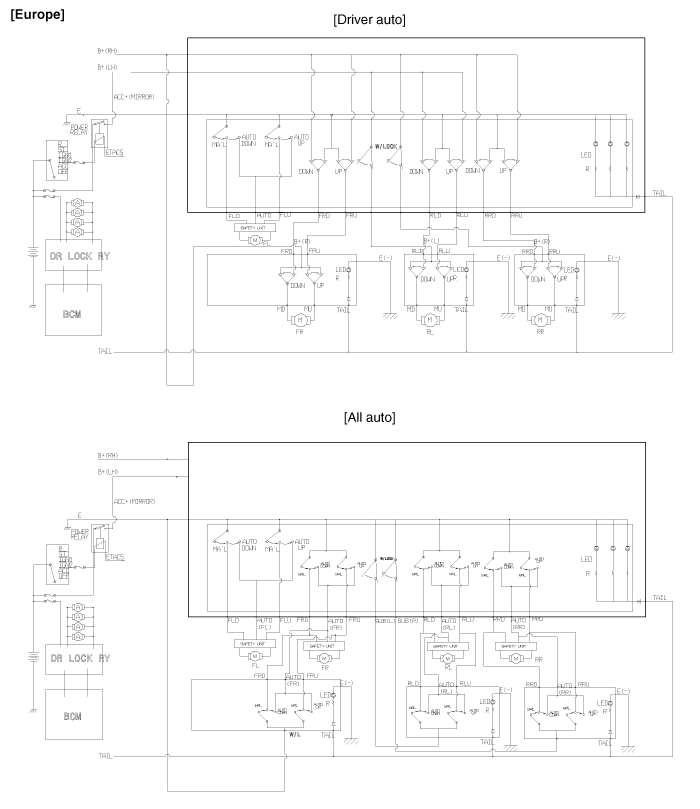

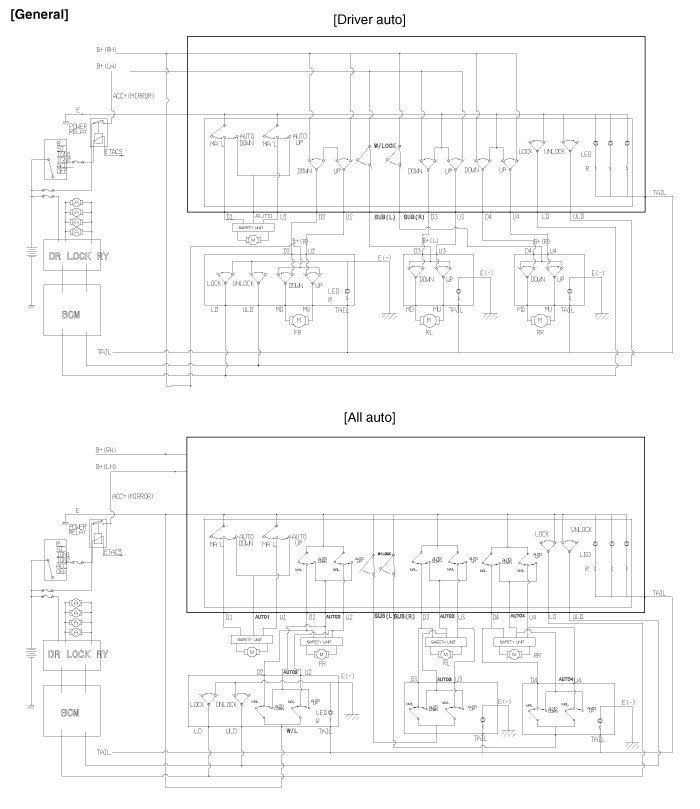

Driver Power Window Switch

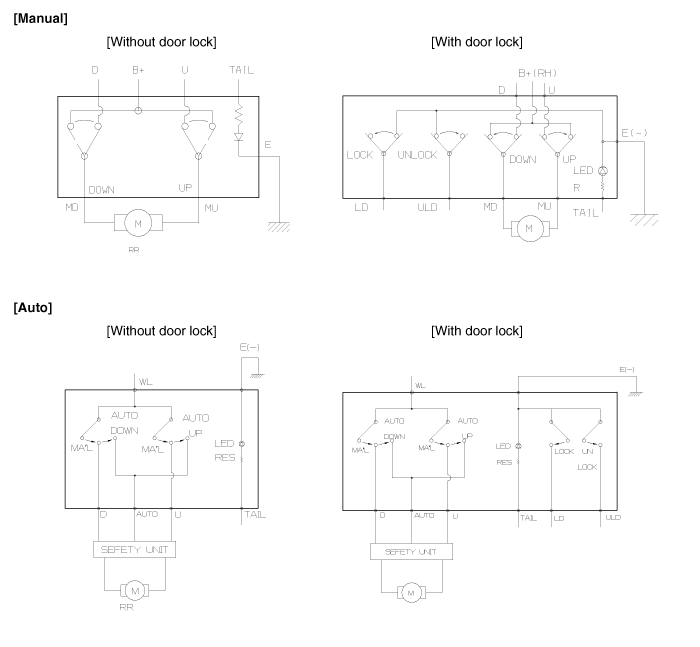

Assist Power Window Switch

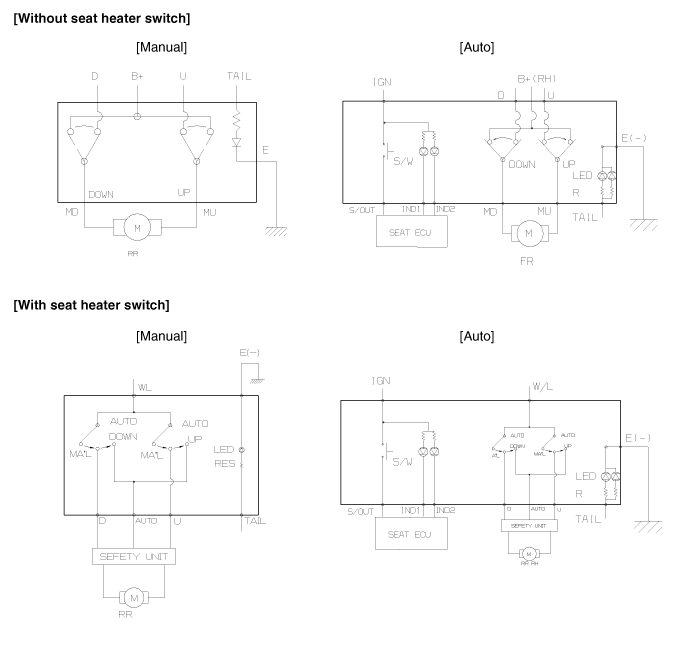

Rear Power Window Switch

Power Window Switch Components and components location
Components Driver Power Window Switch Assist Power Window Switch Rear Power Window Switch ...

Power Window Switch Repair procedures
Inspection Power Window Main Switch Inspection 1. Disconnect the negative (-) battery terminal. 2. Remove the front door trim. ...
