Kia Carens: Smart Key System / Smart Key Unit Schematic diagrams

Kia Carens RP (2013-2018) Service Manual / Body Electrical System / Smart Key System / Smart Key Unit Schematic diagrams

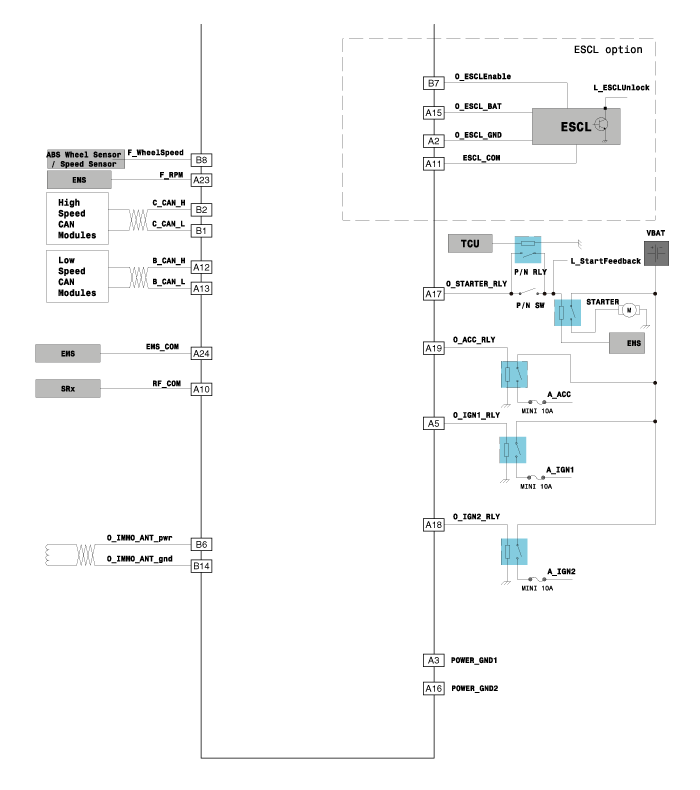

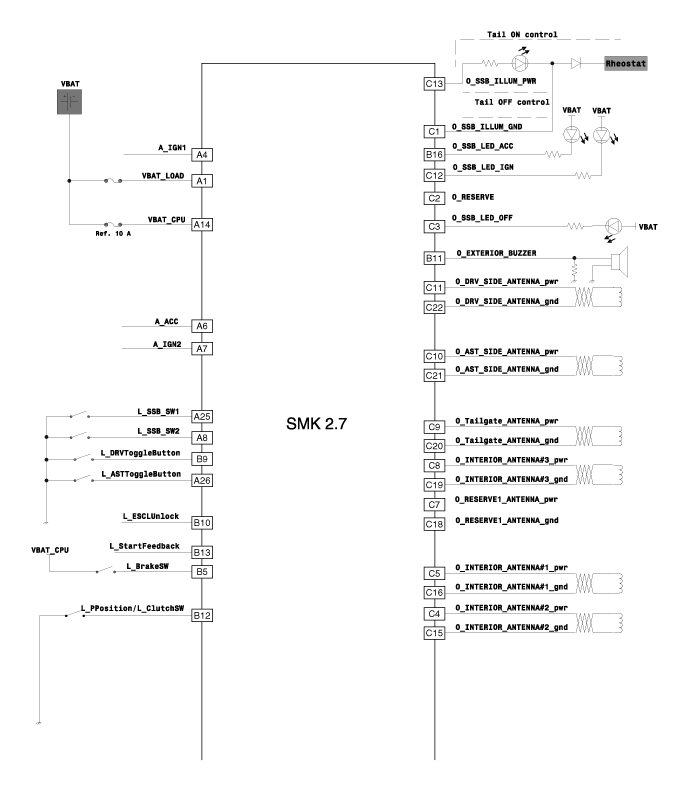

Circuit Diagram

Smart Key Unit Components and components location
Components (1) Connector Pin Information No. Connector A Connector B Connector C 1 V_BAT load ...

Smart Key Unit Repair procedures
Removal Smart Key Unit 1. Disconnect the negative (-) battery terminal. 2. Remove the floor console upper cover. (Refer to ...
