Kia Carens: Panorama sunroof / Sliding the sunroof

Kia Carens RP (2013-2018) Owners Manual / Features of your vehicle / Panorama sunroof / Sliding the sunroof

When the sunshade is closed

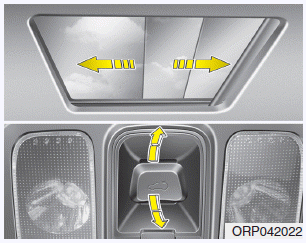

If you pull the sunroof control lever backward, the sunshade will slide all the way open then the sunroof glass will slide all the way open.To stop the sunroof movement at any point, pull or push the sunroof control lever momentarily.

When the sunshade is opened

If you pull the sunroof control lever backward, the sunroof glass will slide all the way open. To stop the sunroof movement at any point, pull or push the sunroof control lever momentarily.

Sunshade

To open the sunshade, press the sunshade control switch(1). To close the sunshade when the sunroof glass is closed. - Press the sunshade control switch(2). ❈ When you press the sunshade close b ...

Tilting the sunroof

When the sunshade is closed If you push the sunroof control lever upward, the sunshade will slide all the way open then the sunroof glass will tilt. To stop the sunroof movement at any point, pull o ...
