Kia Carens: Panorama sunroof / Sunshade

Kia Carens RP (2013-2018) Owners Manual / Features of your vehicle / Panorama sunroof / Sunshade

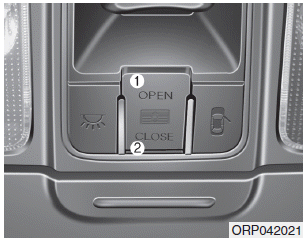

To open the sunshade, press the sunshade control switch(1).
To close the sunshade when the sunroof glass is closed.

- Press the sunshade control switch(2).

❈ When you press the sunshade close button (2) with the sunroof glass opened, the sunshade and sunroof glass will be closed. To stop the sliding at any point, press the sunshade control switch momentarily.
