Kia Carens: Rear parking assist system / Operation of the rear parking assist system
Operating condition

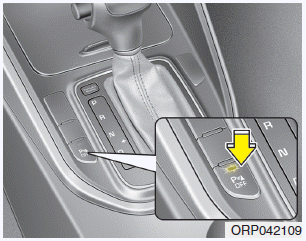

• This system will activate when the indicator on the rear parking assist OFF
button is not illuminated.
If you desire to deactivate the rear parking assist system, press the rear parking
assist OFF button again. (The indicator on the button will illuminate.) To turn
the system on, press the button again. (The indicator on the button will go off.)
- This system will activate when backing up with the ignition switch ON. If
the vehicle is moving at a speed over 5 km/h (3 mph), the system may not be
activated correctly.
- The sensing distance while the rear parking assist system is in operation
is approximately 120 cm (47 in.).
- When more than two objects are sensed at the same time, the closest one
will be recognized first.
Types of warning sound
- When an object is 120 cm to 61 cm (47 in. to 23.6 in.) from the rear bumper:
Buzzer beeps intermittently
- When an object is 60 cm to 31 cm (23.6 in. to 12.2 in.) from the rear bumper:
Buzzer beeps more frequently
- When an object is within 30 cm (11.8 in.) of the rear bumper: Buzzer sounds
continuously.

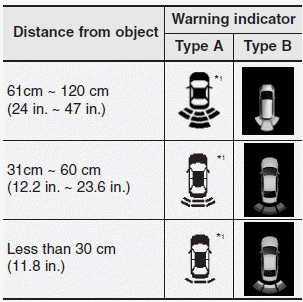

Type of the warning indicator
The rear parking assist system assists the driver during backward movement of
the vehicle by chiming if any object is sensed within a distance of 120 cm (47 in.)
behind the vehicle. This system is ...
The rear parking assist system may not operate properly when:
1. Moisture is frozen to the sensor. (It will operate normally when the moisture
has been cleared.)
2. The sensor is covered with foreign ...
