Kia Carens: Seat Electrical / Seat Heater Switch Schematic diagrams

Kia Carens RP (2013-2018) Service Manual / Body Electrical System / Seat Electrical / Seat Heater Switch Schematic diagrams

Circuit Diagram

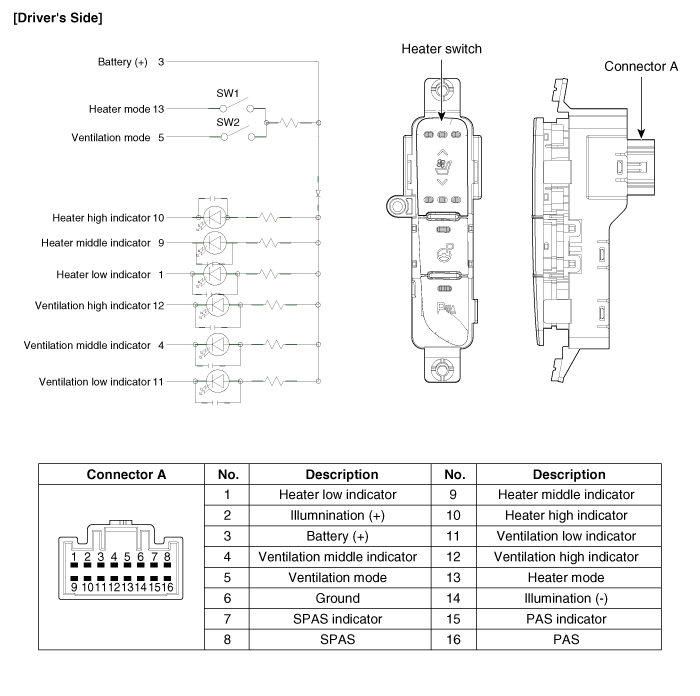

[First Row Seat]

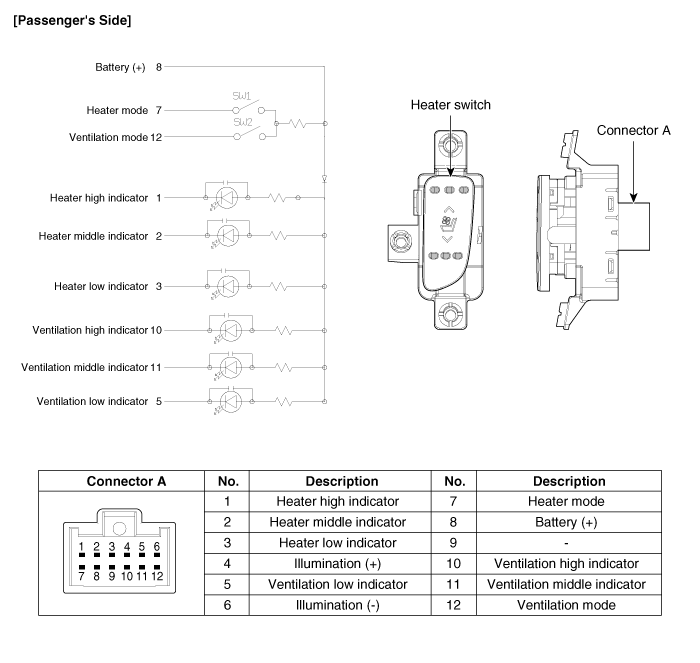

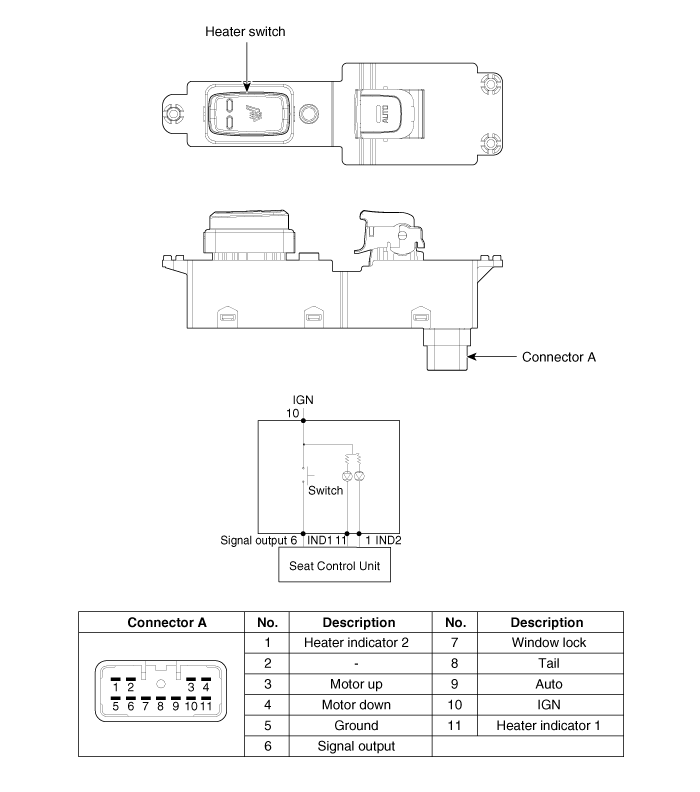

[Second Row Seat]

Power Seat Control Switch Repair procedures
Inspection 1. With the power seat switch in each position, make sure that continuity exists between the terminals below. If continuity is not as specified, r ...

Seat Heater Switch Repair procedures
Removal First Row Seat 1. Disconnect the negative (-) battery terminal. 2. Remove the console front complete assembly. (Ref ...
