Kia Carens: Seat Electrical / Power Seat Control Switch Repair procedures

Kia Carens RP (2013-2018) Service Manual / Body Electrical System / Seat Electrical / Power Seat Control Switch Repair procedures

Inspection

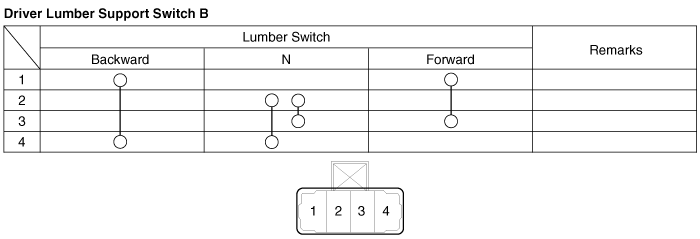

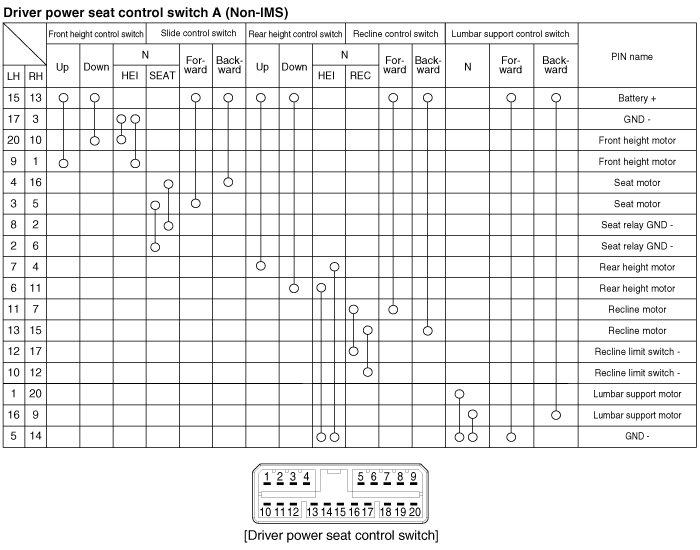

1.	With the power seat switch in each position, make sure that continuity exists between the terminals below. If continuity is not as specified, replace the power seat switch.

Removal

1.	Disconnect the negative (-) battery terminal.

2.	Remove the front seat shield outer cover. (Refer to Body - "Front Seat Shield Outer Cover")

3.	Remove the power seat control switch (A) and extension switch (B) after loosening the mounting screws.

Installation

1.	Install the power seat control switch and extension switch after connecting the connector.

Power Seat Control Switch Schematic diagrams

Circuit Diagram ...

Seat Heater Switch Schematic diagrams

Circuit Diagram [First Row Seat] [Second Row Seat] ...
