Kia Carens: ABS(Anti-Lock Brake System) / Rear Wheel Speed Sensor Components and components location

Kia Carens RP (2013-2018) Service Manual / Brake System / ABS(Anti-Lock Brake System) / Rear Wheel Speed Sensor Components and components location

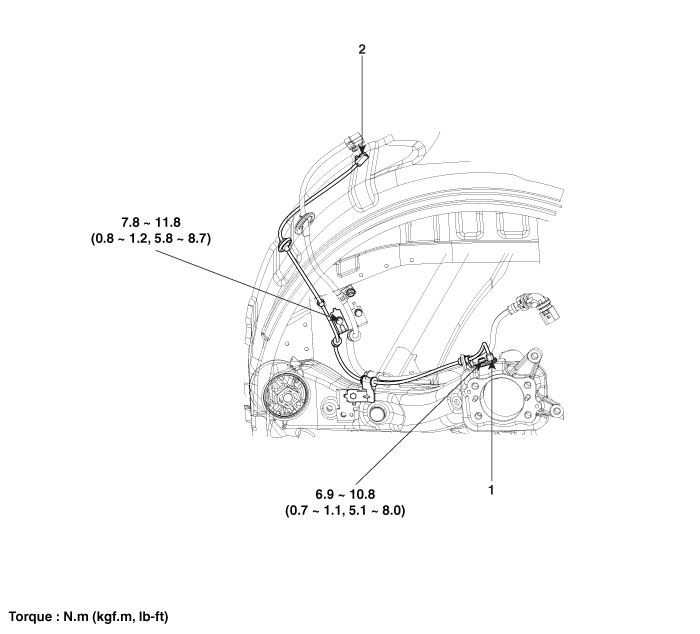

Components

1. Rear wheel speed sensor
2. Rear wheel speed sensor connector
