Kia Carens: Clutch Master Cylinder / Components and components location

Kia Carens RP (2013-2018) Service Manual / Clutch System / Clutch Master Cylinder / Components and components location

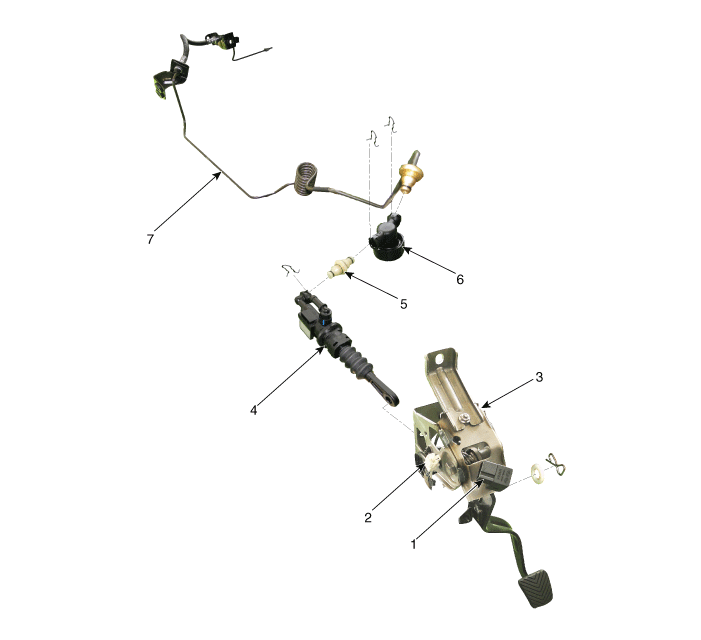

Components

1. Clutch switch
2. Ignition lock switch
3. Clutch pedal assembly
4. Master cylinder assembly
5. Connector (Only diesel)
6. Regulator (Only diesel)
7. Clutch tube

Clutch Master Cylinder
...

Repair procedures
Removal 1. Remove the battery. G 1.6 GDI (Refer to Engine Electrical System - "Battery") G 2.0 GDI (Refer to Engine Electrical System - &qu ...
