Kia Carens: Heater / Heater Unit Components and components location

Kia Carens RP (2013-2018) Service Manual / Heating,Ventilation And Air Conditioning / Heater / Heater Unit Components and components location

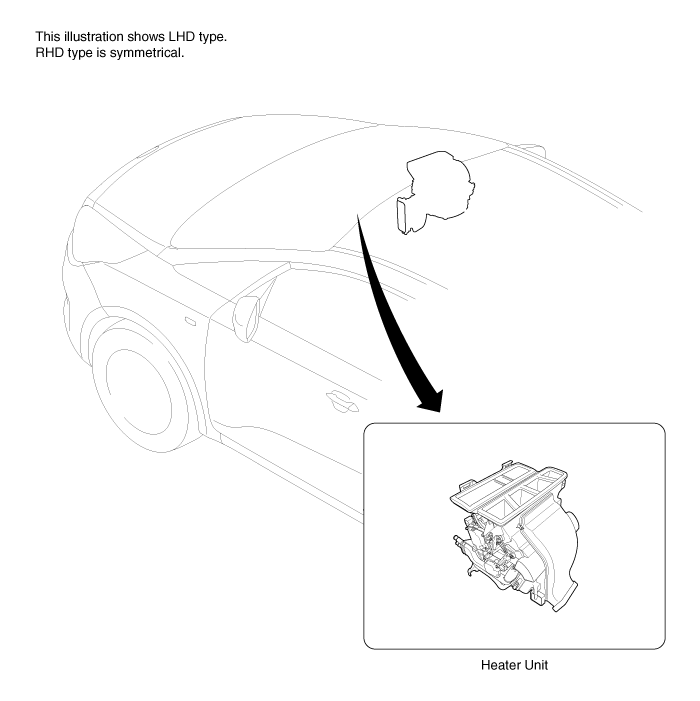

Component Location

Components

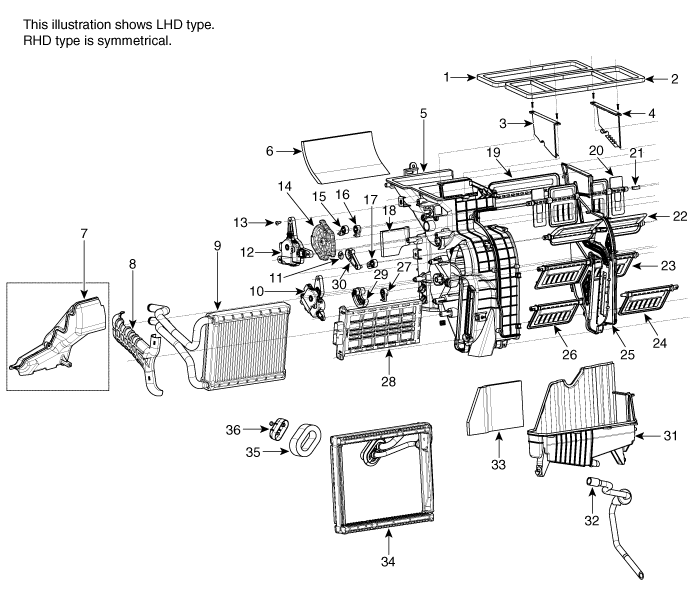

[LH]

1. Flange Seal
2. Flange Seal
3. Ventilation Guide
4. Ventilation Guide
5. Heater Case
6. Antinoise Pad
7. Foot Shower Left Duct
8. Heater Core Cover
9. Heater Core & Seal Assembly
10. Temp Actuator Motor Assembly
11. Spring Washer
12. Mode Actuator Assembly
13. Tap Screw Ratchet
14. Mode Cam
15. Defroster Door Arm
16. Ventilation Door Arm
17. Floor Door Arm
18. Antinoise Pad
19. Defogging Door Assembly
20. Vent Door Assembly
21. Case To Case Clip
22. Floor Door Assembly
23. Temp Door Assembly
24. Dual LH Temp Door Assembly
25. Dual Heater Separator
26. Dual RH Temp Door Assembly
27. Temperature Door Single Arm
28. PTC Heater
29. Temperature Door Lever
30. Floor Door Lever
31. Lower Case
32. Drain Hose
33. Antinoise Pad
34. Evaporator Core Assembly
35. Evaporator Pipe Seal
36. Joint Flange Cap

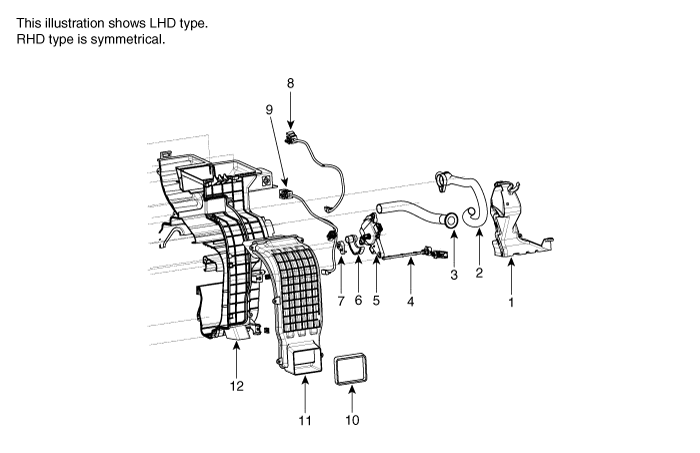

[RH]

1. Foot Shower Right Duct
2. Aspirator Hose
3. Cooling Tube
4. A/C Evap Thermistor Assembly
5. Dual Temp Actuator Motor Assembly
6. Dual Temp Door Lever
7. Temperature Door Dual Arm
8. Manual Wiring Harness
9. Dual Wiring Harness
10. Rear Console Duct Seal
11. Rear Ventilation Cover
12. Heater Case


Heater
...

Heater Unit Repair procedures
