Kia Carens: Light bulbs / Rear combination light bulb replacement
.png)

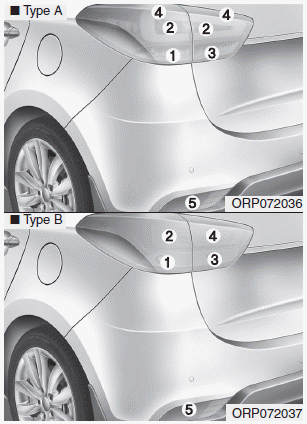

(1) Rear turn signal light
(2) Stop/tail light
(3) Back-up light
(4) Tail light or stop/tail light (for LED type)
(5) Rear fog & Reflex reflector light
If the light bulb does not operate, we recommend that the system be checked by
an authorized Kia dealer. ...
Rear turn signal light and stop/tail light
1. Turn off the engine.
2. Open the tailgate.
3. Loosen the light assembly retaining screws with a cross-tip screwdriver.
4. Remove the rear combination lig ...
