Kia Carens: Rear combination light bulb replacement / Outside light

Kia Carens RP (2013-2018) Owners Manual / Maintenance / Light bulbs / Rear combination light bulb replacement / Outside light

Rear turn signal light and stop/tail light

1. Turn off the engine.

2. Open the tailgate.

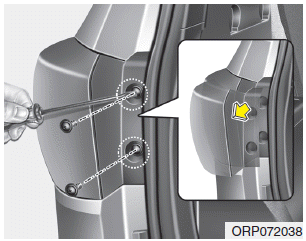

3. Loosen the light assembly retaining screws with a cross-tip screwdriver.

4. Remove the rear combination light assembly from the body of the vehicle.

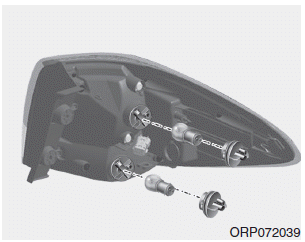

5. Remove the socket from the assembly by turning the socket counterclockwise until the tabs on the socket align with the slots on the assembly.

6. Remove the bulb from the socket by pressing it in and rotating it counterclockwise until the tabs on the bulb align with the slots in the socket. Pull the bulb out of the socket.

7. Insert a new bulb by inserting it into the socket and rotating it until it locks into place.

8. Install the socket in the assembly by aligning the tabs on the socket with the slots in the assembly. Push the socket into the assembly and turn the socket clockwise.

9. Reinstall the light assembly to the body of the vehicle.

Stop and tail light or tail light (LED type)

If the light does not operate, we recommend that the system be checked by an authorized Kia dealer.
