Kia Carens: Your vehicle at a glance / Interior overview

Kia Carens RP (2013-2018) Owners Manual / Your vehicle at a glance / Interior overview

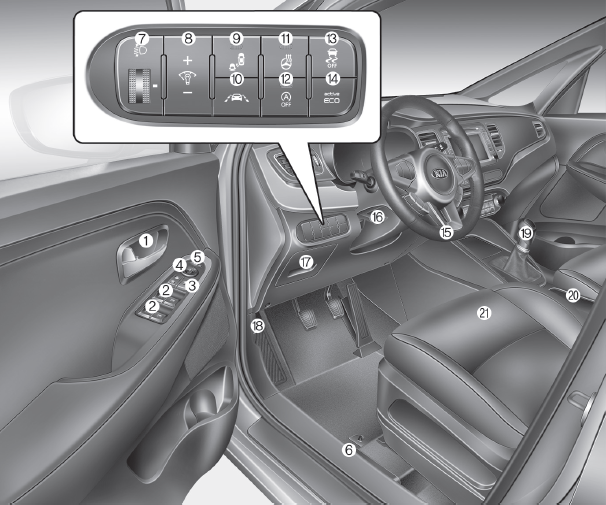

1. Inside door handle
2. Power window switch
3. Power window lock switch
4. Outside rearview mirror control
5. Outside rearview mirror folding
6. Fuel filler lid open lever
7. Headlight leveling device
8. Instrument panel illumination control switch
9. BSD On/Off button
10. LDWS On/OFF button
11. Steering wheel heater On/Off Button
12. Idle Stop and Go (ISG) OFF button
13. ESC Off button
14. Active ECO button
15. Steering wheel
16. Tilt and telescopic steering control lever
17. Inner panel fuse panel
18. Hood release lever
19. Transaxle shift lever
20. Cup holder
21. Seat
