Kia Carens RP (2013-2018) Service Manual / Body Electrical System / Power Windows / Power Window Switch Components and components location

Components

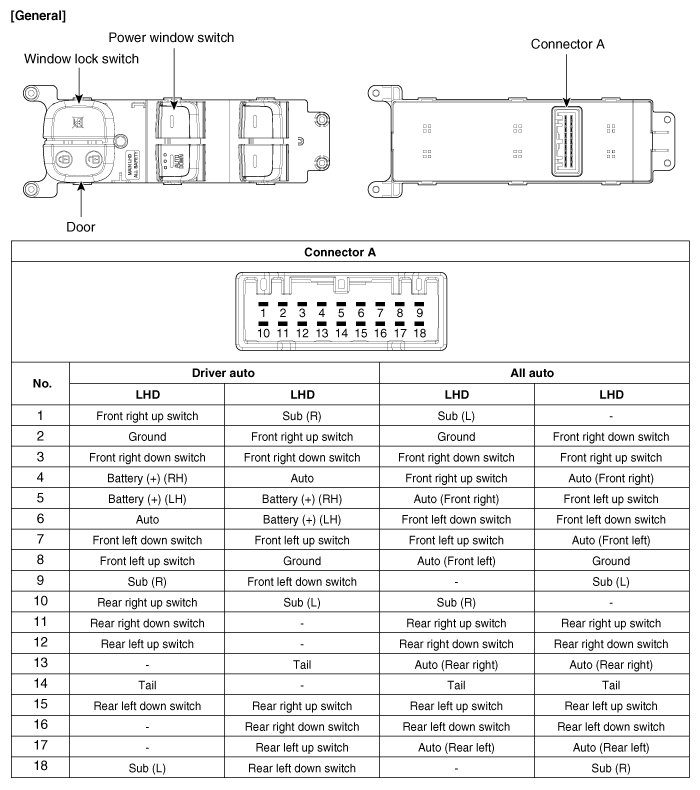

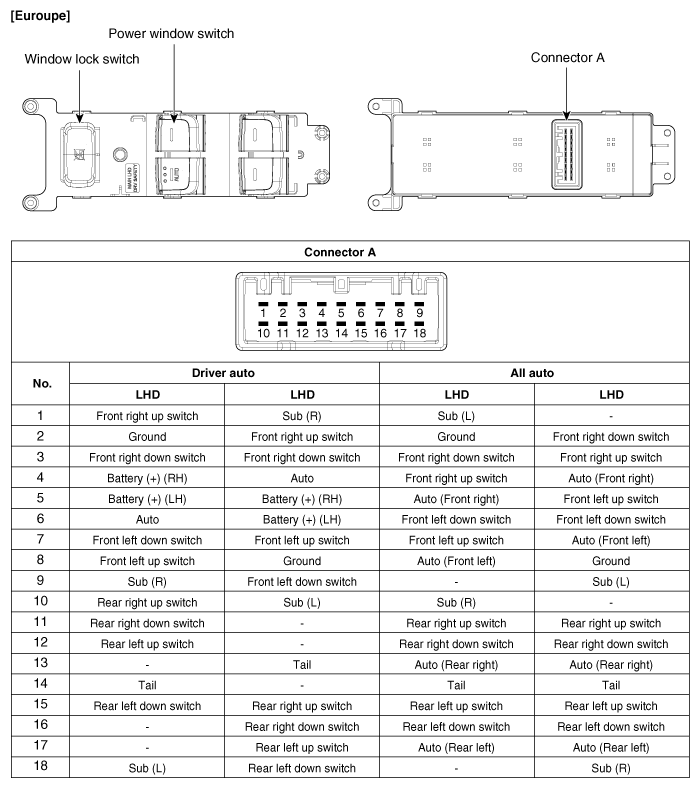

Driver Power Window Switch

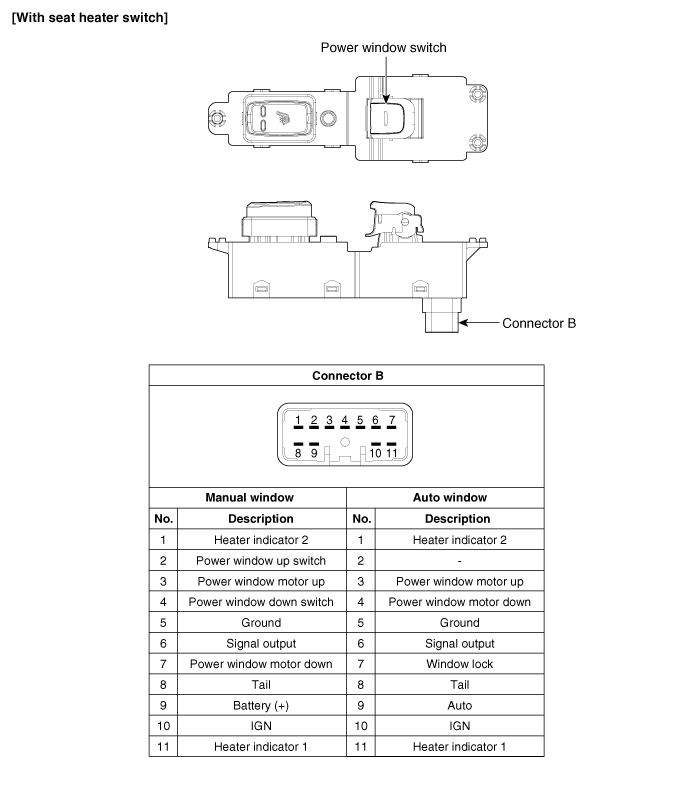

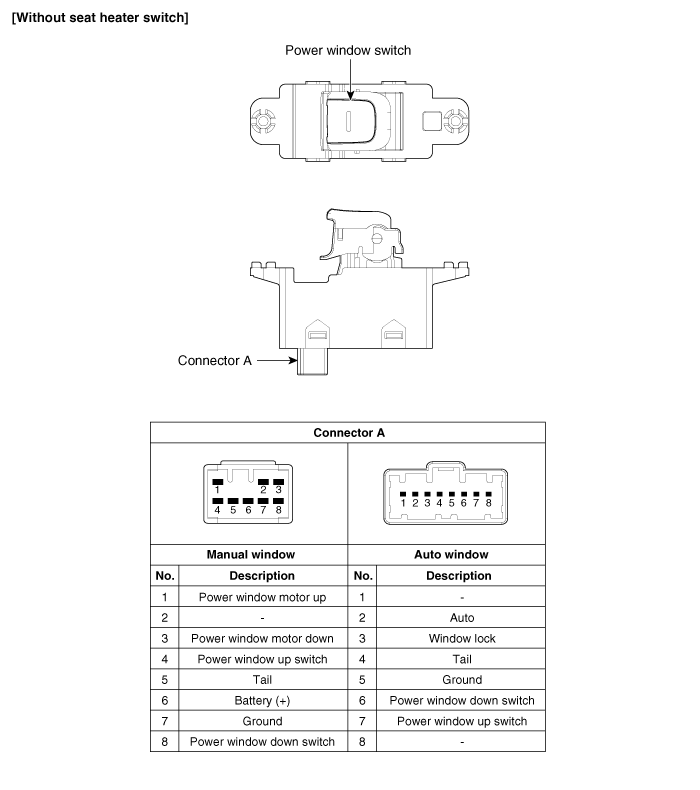

Assist Power Window Switch

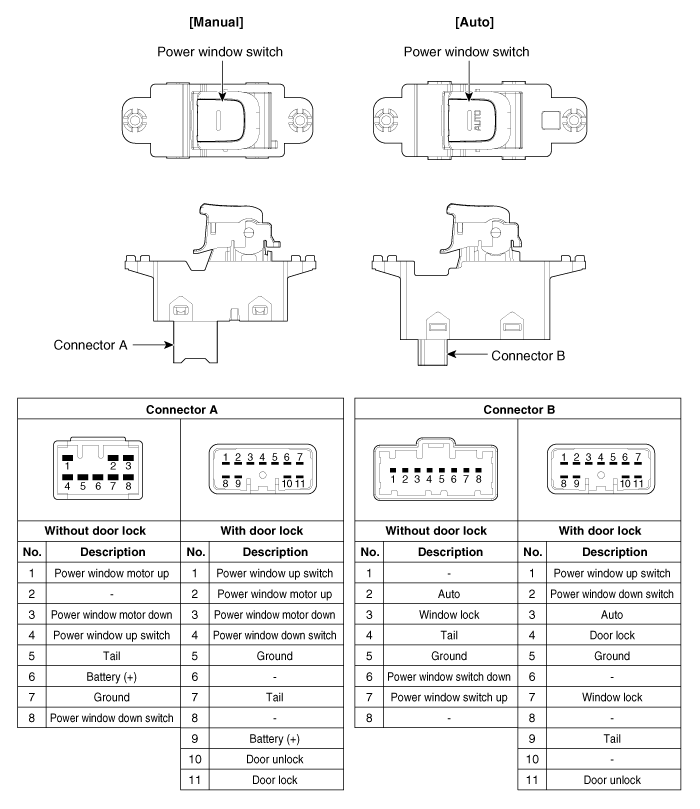

Rear Power Window Switch

Power Window Motor Repair procedures

Inspection Front Power Window Motor 1. Disconnect the negative (-) battery terminal. 2. Remove the front door trim. (Refer ...

Power Window Switch Schematic diagrams

Circuit Diagram Driver Power Window Switch Assist Power Window Switch Rear Power Window Switch ...
