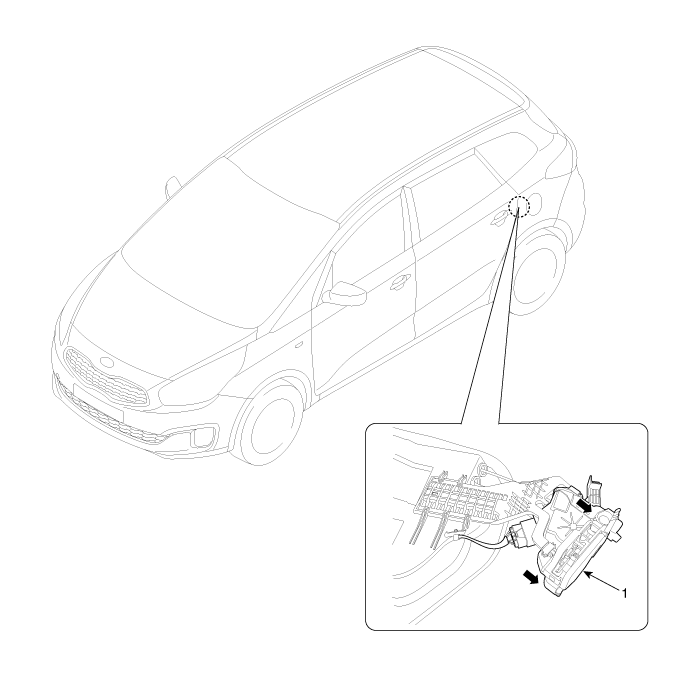

Kia Carens: Rear Door / Rear Door Latch Components and components location

Rear Door Outside Handle Repair procedures

Replacement 1. Remove the hole plug (A). 2. After loosening the mounting bolt, then remove the rear door outside handle cover (B). ...

Rear Door Latch Repair procedures

Replacement 1. Remove the rear door module. (Refer to Rear Door - "Rear Door Module") 2. Remove the rear door outside ...

Other information:

Kia Carens RP (2013-2018) Owners Manual: Outside light

Rear turn signal light and stop/tail light 1. Turn off the engine. 2. Open the tailgate. 3. Loosen the light assembly retaining screws with a cross-tip screwdriver. 4. Remove the rear combination light assembly from the body of the vehicle. 5. Remove the socket from the assembly by turning the soc ...

Kia Carens RP (2013-2018) Service Manual: Cylinder Head Components and components location

Components 1. Cylinder head assembly 2. MLA 3. Retainer lock 4. Retainer 5. Valve stem seal 6. Valve spring 7. Valve spring seat 8. OCV (Oil Control Valve) 9. Exhaust valve 10. Intake valve 11. Cylinder head gasket ...
