Removal

1.	Disconnect the negative (-) battery terminal.

2.	Remove the front left door trim. (Refer to Body - "Front Door Trim")

3.	Remove the power window bezzel assembly (A) after loosening the mounting screws.

4.	Remove the power window switch aseembly (A) after loosening the mounting screws.

5.	Remove the power mirror switch after loosening the mounting screw.

Installation

1.	Install the power mirror switch.

2.	Install the front door trim after connecting the connector.

3.	Connect the negative (-) battery terminal.

Inspection

1.	Remove the front left door trim. (Refer to Body - "Front Door Trim")

2.	Remove the power mirror switch (A) from the door trim.

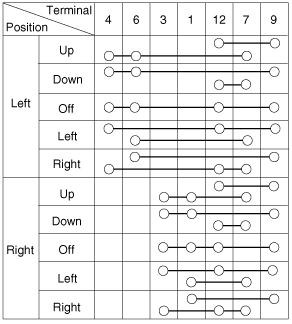

3.	Check for continuity between the terminals in each switch position according to the table. [Power Mirror Switch] [Power Folding Mirror Switch]

Power Door Mirror Switch Schematic diagrams

Circuit Diagram ...

Power Door Mirror Actuator Repair procedures

Inspection 1. Disconnect the negative (-) battery terminal. 2. Remove the front door quadrant cover (A). 3. ...
