Kia Carens: Power Door Mirrors / Power Door Mirror Actuator Repair procedures

Kia Carens RP (2013-2018) Service Manual / Body Electrical System / Power Door Mirrors / Power Door Mirror Actuator Repair procedures

Inspection
1.
Disconnect the negative (-) battery terminal.
2.

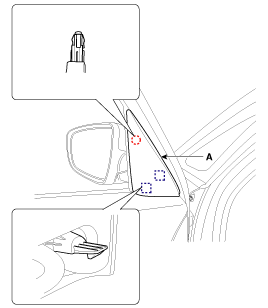

Remove the front door quadrant cover (A).

3.
Disconnect the power door mirror connector (A) from the harness.

4.

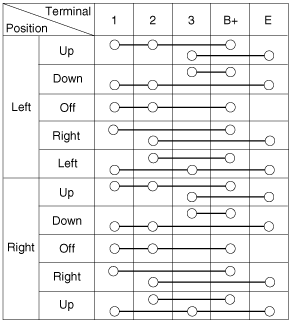

Apply battery voltage to each terminal as shown in the table and verify that the mirror operates properly.
[Actuator]

Mirror Heater

Turn Signal Lamp

Puddle Lamp

Folding Mirror

Power Door Mirror Switch Repair procedures
Removal 1. Disconnect the negative (-) battery terminal. 2. Remove the front left door trim. (Refer to Body - "Front Door ...
