Kia Carens: Power Door Mirrors / Power Door Mirror Switch Schematic diagrams

Kia Carens RP (2013-2018) Service Manual / Body Electrical System / Power Door Mirrors / Power Door Mirror Switch Schematic diagrams

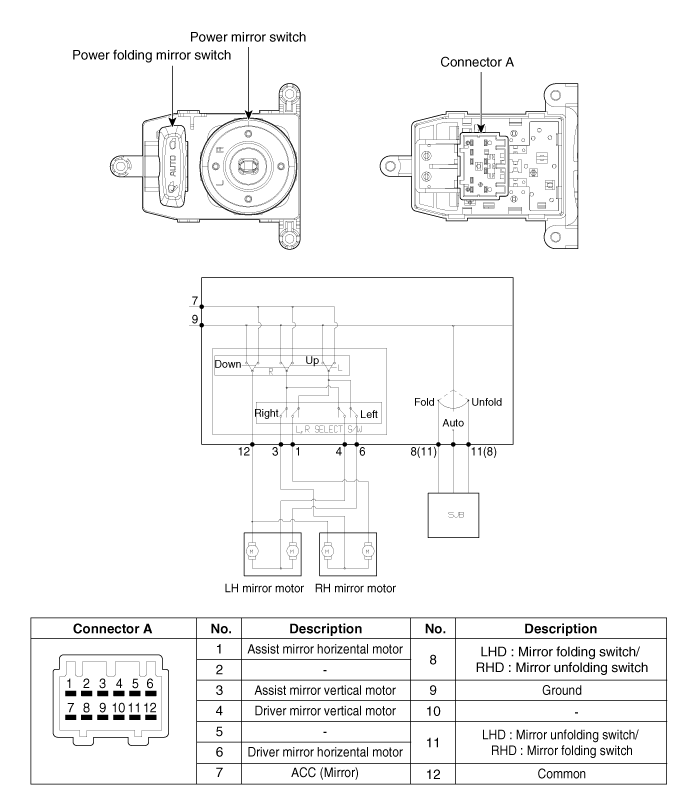

Circuit Diagram

Components and components location

Component Location 1. Power door mirror 2. Power door mirror switch 3. Power folding mirror switch ...

Power Door Mirror Switch Repair procedures

Removal 1. Disconnect the negative (-) battery terminal. 2. Remove the front left door trim. (Refer to Body - "Front Door ...
