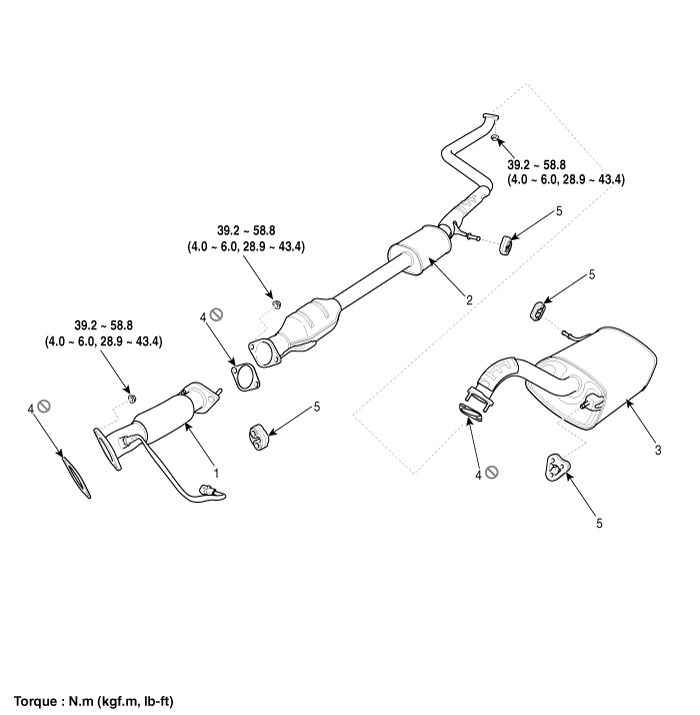

Components

1. Front muffler
2. Center muffler
3. Main muffler

4. Gasket
5. Hanger

Exhaust Manifold Repair procedures

Removal and Installation 1. Remove the engine cover. 2. Disconnect the battery negative terminal. 3. Disc ...

Muffler Repair procedures

Removal and Installation Front Muffler 1. Disconnect the rear oxygen sensor connector (A). 2. Remove the front muffler (A). ...
