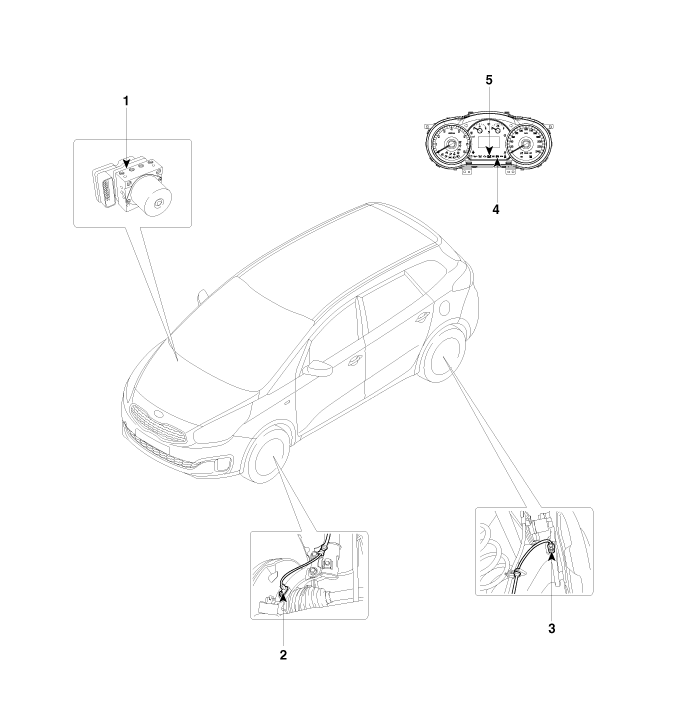

Components

1. ABS Control Module(HECU)
2. Front Wheel Speed Sensor
3. Rear Wheel Speed Sensor

4. ABS Warning lamp
5. EBD / Parking brake warning lamp

Description and operation

Description This specification applies to HCU(Hydraulic Control Unit) and ECU(Electronic Control Unit) of the HECU.(Hydraulic and Electronic Control Unit) This specification is ...
