Kia Carens: Your vehicle at a glance / Instrument panel overview

Kia Carens RP (2013-2018) Owners Manual / Your vehicle at a glance / Instrument panel overview

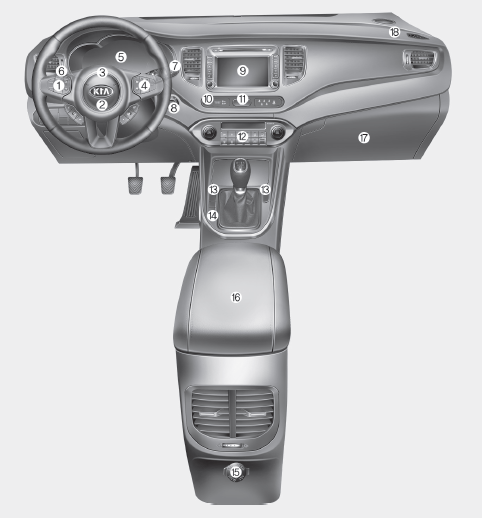

1. Audio remote control buttons
2. Driver’s front air bag
3. Horn
4. Cruise/Speed limiter control button
5. Instrument cluster
6. Lighting control lever
7. Wiper and washer control lever
8. Ignition switch or Engine start/stop button
9. Audio
10. Central door lock switch
11. Hazard warning flasher
12. Climate control system
13. Front seat warmer / Seat cooler
14. Parking assist system On/Off button
15. Power outlet
16. Center console storage box
17. Glove box
18. Passenger’s front air bag

Interior overview
1. Inside door handle 2. Power window switch 3. Power window lock switch 4. Outside rearview mirror control 5. Outside rearview mirror folding 6. Fuel filler lid open lever 7. Headlight leveling devi ...

Engine compartment
■ Gasoline engine 1.6 L- GDI ■ Gasoline engine 2.0 L- GDI ■ Gasoline engine 2.0 L- MPI 1. Engine oil filler cap 2. Brake/clutch fluid reservoir 3. Positive battery terminal 4. Negative batter ...
