Kia Carens: Steering wheel / Components and components location

Kia Carens RP (2013-2018) Service Manual / Steering System / Steering wheel / Components and components location

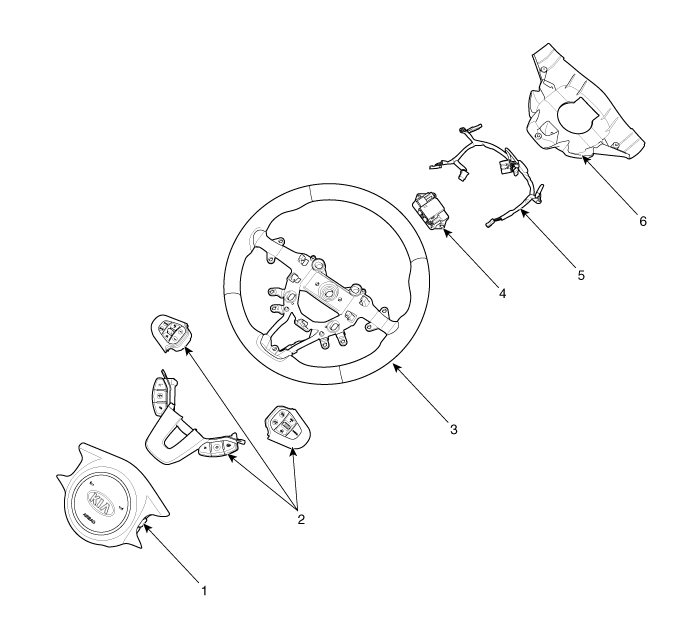

Component

1. Airbag module
2. Remote control switch
3. Steering wheel
4. Heated unit
5. Wiring
6. Lower cover

Steering wheel
...

Repair procedures
Replacement 1. Disconnect the battery negative cable from the battery and then wait for at least 30 seconds. 2. T ...
