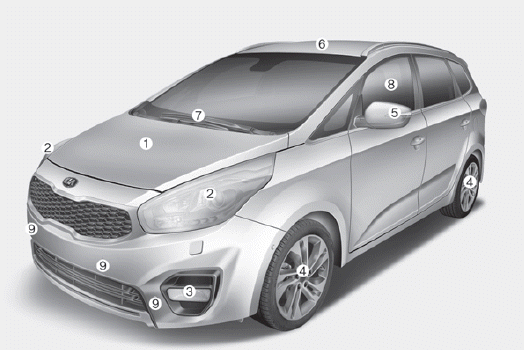

■ Front view

1. Hood
2. Head lamp (Features of your vehicle)
Head lamp (Maintenance)
3. Front fog lamp (Features of your vehicle)
Front fog lamp (Maintenance)
4. Wheel and tire
5. Outside rearview mirror
6. Panorama sunroof
7. Front windshield wiper blades (Features of your vehicle)
Front windshield wiper blades (Maintenance)
8. Windows
9. Parking assist system

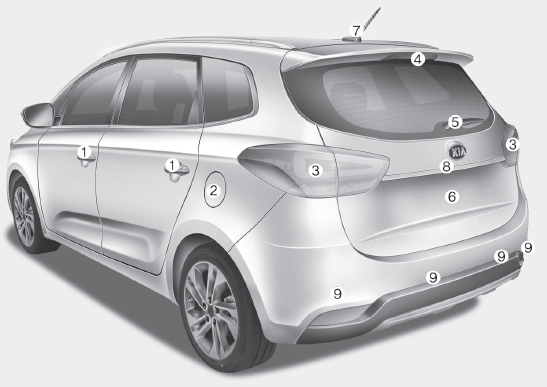

■ Rear view

1. Door locks
2. Fuel filler lid
3. Rear combination lamp (Maintenance)
4. High mounted stop lamp (Maintenance)
5. Rear window wiper blade
6. Tailgate
7. Antenna
8. Rearview camera
9. Parking assist system (Rear)
Parking assist system (Front)

Your vehicle at a glance
...

Interior overview
1. Inside door handle 2. Power window switch 3. Power window lock switch 4. Outside rearview mirror control 5. Outside rearview mirror folding 6. Fuel filler lid open lever 7. Headlight leveling devi ...
