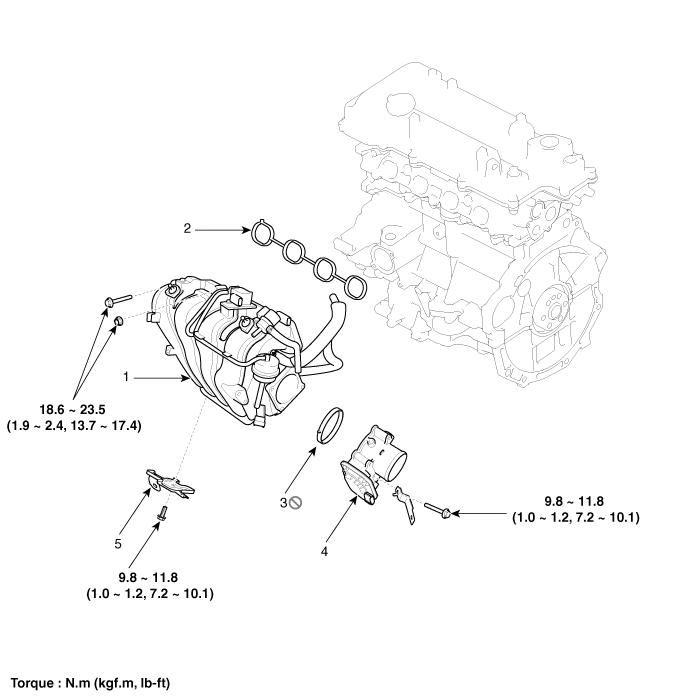

Components

1. Intake manifold assembly
2. Intake manifold gasket

3. Electronic throttle body gasket
4. Electronic throttle body
5. Bracket

Air Cleaner Repair procedures

Removal and Installation 1. Remove the engine cover. 2. Disconnect the battery negative terminal. 3. Remo ...

Intake Manifold Repair procedures

Removal and Installation 1. Remove the engine cover. 2. Disconnect the battery negative terminal. 3. Remo ...
