Kia Carens: Cylinder Head Assembly / CVVT & Camshaft Components and components location

Kia Carens RP (2013-2018) Service Manual / Engine Mechanical System / Cylinder Head Assembly / CVVT & Camshaft Components and components location

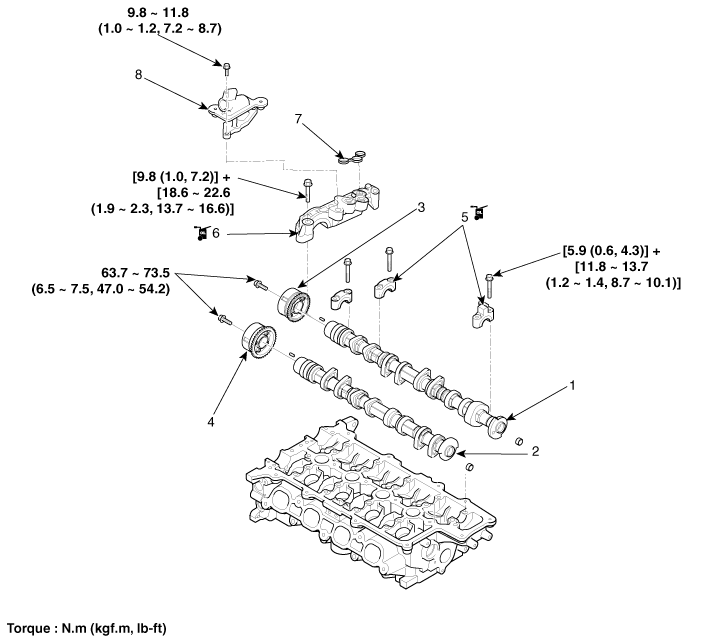

Components

1. Exhaust camshaft
2. Intake camshaft
3. Exhaust CVVT
4. Intake CVVT
5. Camshaft bearing cap
6. Camshaft front bearing cap
7. O-ring
8. OCV (Oil Control Valve) adapter

Cylinder Head Cover Repair procedures
Removal 1. Remove the engine cover. 2. Disconnect the battery negative terminal. 3. Disconnect the intake ...

CVVT & Camshaft Description and operation
Description Continuous Variable Valve Timing (CVVT) system advances or retards the valve timing of the intake and exhaust valve in accordance with the ECM control signal which is ...
