Kia Carens: Rear Seat / Rear Seat Folding Lever Components and components location

Kia Carens RP (2013-2018) Service Manual / Body (Interior and Exterior) / Rear Seat / Rear Seat Folding Lever Components and components location

Component Location

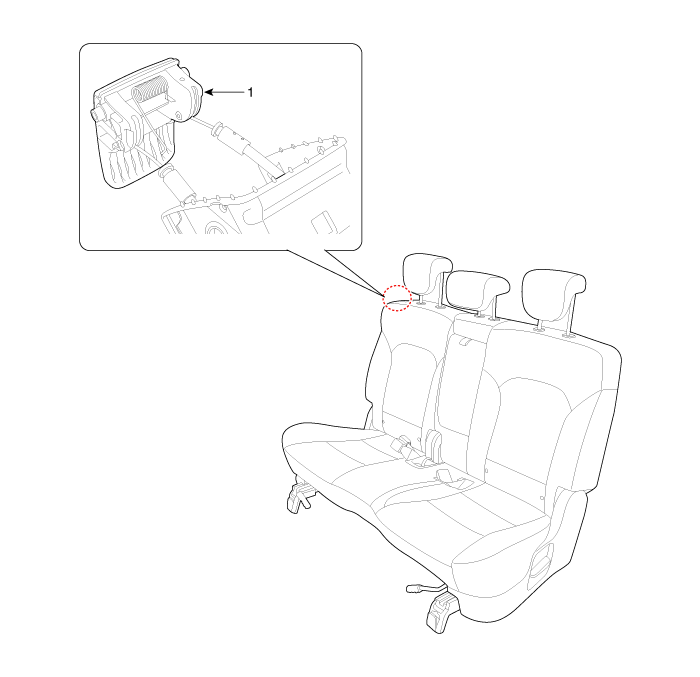

[Second row seat assembly]

(Except Europe and Australia)

[5-seat vehicle]

1. Rear seat back webbing lever

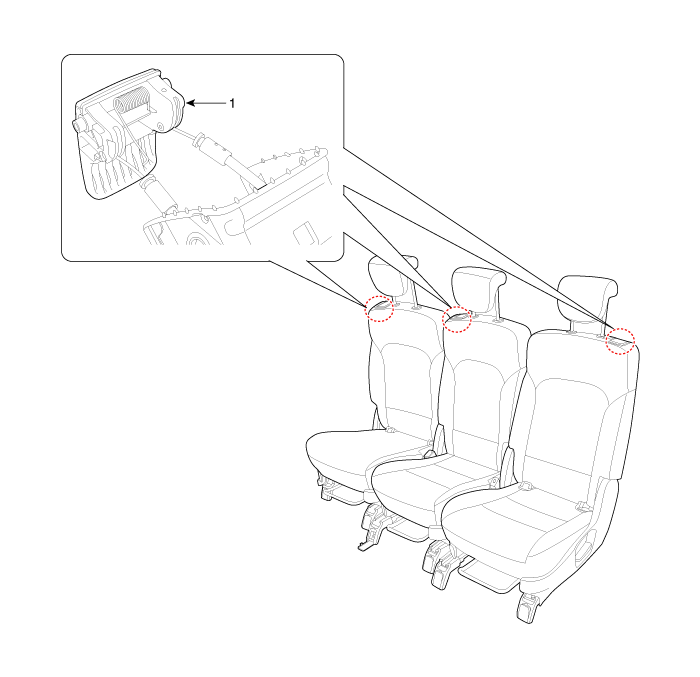

(For Europe and Australia)

[5/7-seat vehicle]

1. Rear seat back webbing lever
