Kia Carens: Instrument Cluster Control / Adjusting Instrument Cluster Illumination

Kia Carens RP (2013-2018) Owners Manual / Features of your vehicle / Instrument cluster / Instrument Cluster Control / Adjusting Instrument Cluster Illumination

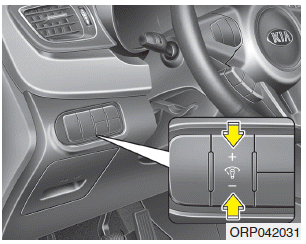

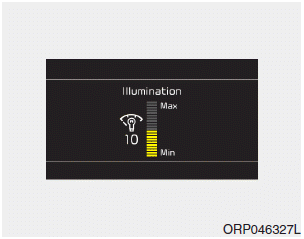

The brightness of the instrument panel illumination is changed by pressing the illumination control button (“+” or “-”) when the ignition switch or Engine Start/Stop button is ON, or the tale lights are turned on.

If you hold the illumination control button (“+” or “-”), the brightness will be changed continuously.
If the brightness reaches to the maximum or minimum level, an alarm will sound.

Instrument Cluster Control

WARNING Never adjust the instrument cluster while driving. This could result in loss of control and lead to an accident that may cause death, serious injury, or property damage. ...

LCD Display Control

The LCD display modes can be changed by using the control buttons on the steering wheel. [Type A] (1) : TRIP button for changing trip modes (2) : RESET button for resetting items [Type B] (1) : MODE ...
