Kia Carens: Your vehicle at a glance / Engine compartment

Kia Carens RP (2013-2018) Owners Manual / Your vehicle at a glance / Engine compartment

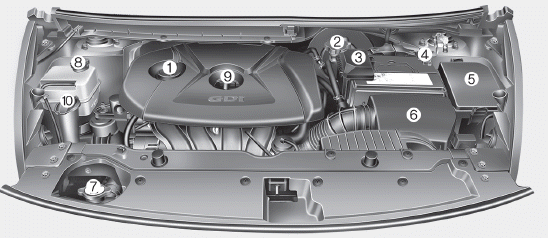

■ Gasoline engine 1.6 L- GDI

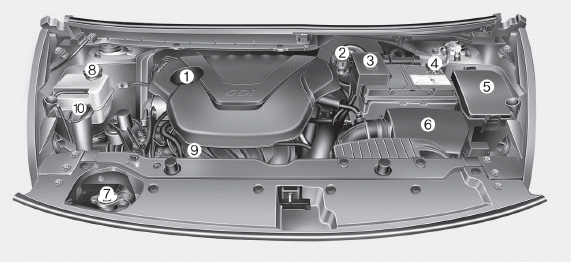

■ Gasoline engine 2.0 L- GDI

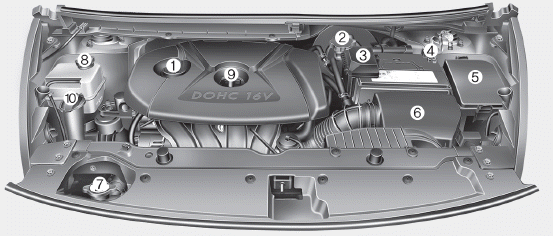

■ Gasoline engine 2.0 L- MPI

1. Engine oil filler cap
2. Brake/clutch fluid reservoir
3. Positive battery terminal
4. Negative battery terminal
5. Fuse box
6. Air cleaner
7. Radiator cap
8. Engine coolant reservoir
9. Engine oil dipstick
10. Windshield washer fluid reservoir

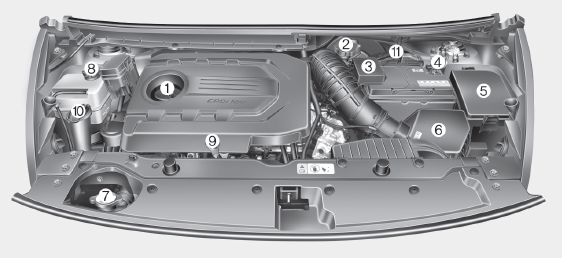

■ Diesel engine (U2-1.7L)

1. Engine oil filler cap
2. Brake/clutch fluid reservoir
3. Positive battery terminal
4. Negative battery terminal
5. Fuse box
6. Air cleaner
7. Radiator cap
8. Engine coolant reservoir
9. Engine oil dipstick
10. Windshield washer fluid reservoir
11. Fuel filter
