Kia Carens RP (2013-2018) Service Manual / Body Electrical System / Fuses And Relays / ICM (Integrated Circuit Module) Relay Box Components and components location

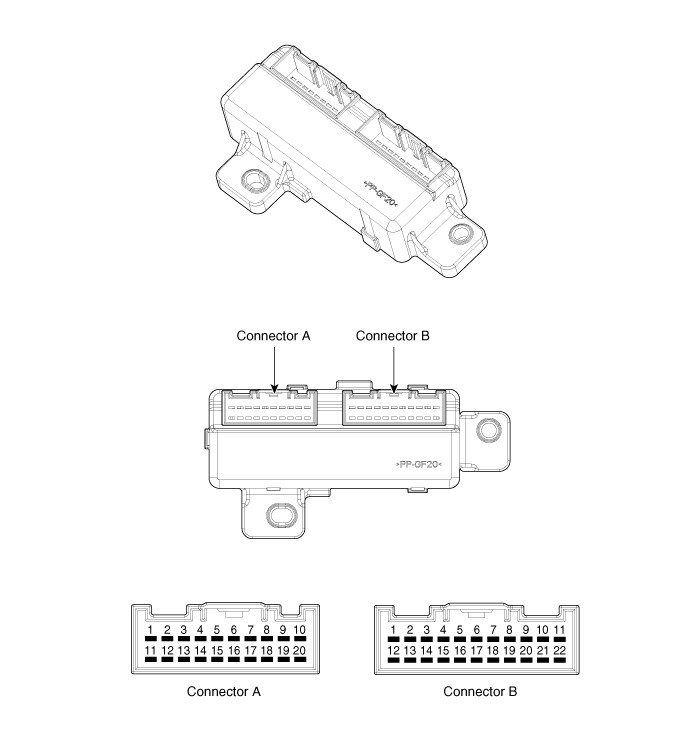

Component

Relay Box (Passenger Compartment) Repair procedures
Fuse Inspection 1. Be sure there is no play in the fuse holders, and that the fuses are held securely. 2. Are the fuse capacities f ...

ICM (Integrated Circuit Module) Relay Box Description and operation
Description The ICM relay is united with (buglar alarm relay, rear wiper relay, fold/unfold motor relay, turn signal sound relay, rear fog relay, door lock actuator relay, head l ...
