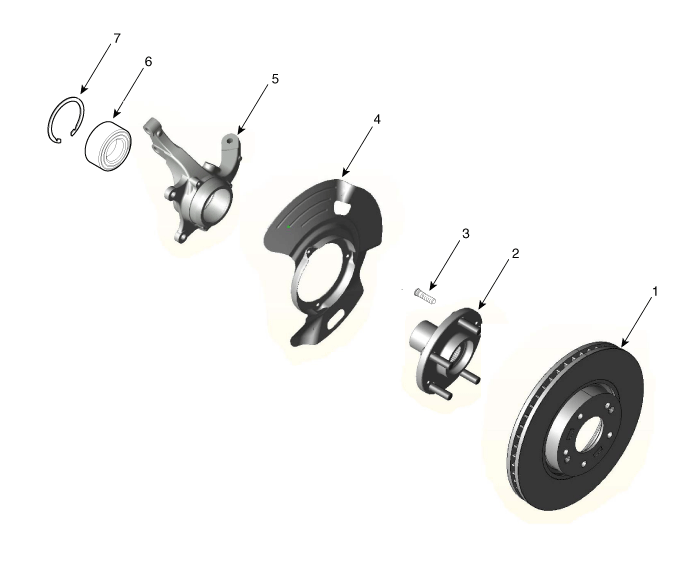

Components

1. Brake disc
2. Wheel hub assembly
3. Hub bolt
4. Dust cover
5. Knuckle
6. Hub bearing
7. Snap ring

Front Axle Assembly / Front Hub / Knuckle
...

Repair procedures
Replacement 1. Loosen the wheel nuts slightly. Raise the vehicle, and make sure it is securely supported. 2. Remove the front ...
