Kia Carens: Engine Control System / Intake Air Temperature Sensor (IATS) Schematic diagrams

Kia Carens RP (2013-2018) Service Manual / Engine Control / Fuel System / Engine Control System / Intake Air Temperature Sensor (IATS) Schematic diagrams

Circuit Diagram

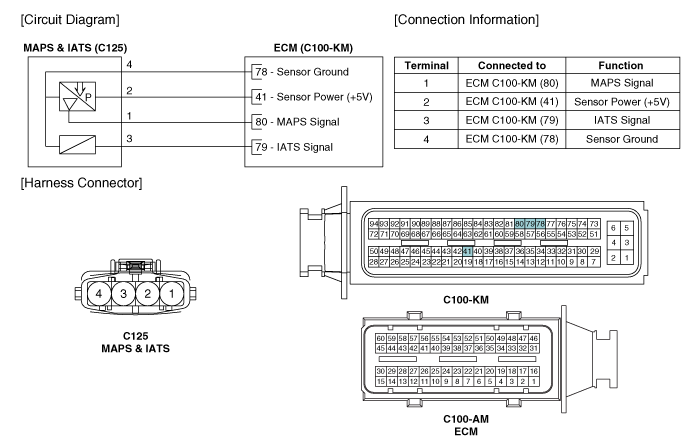

(M/T)

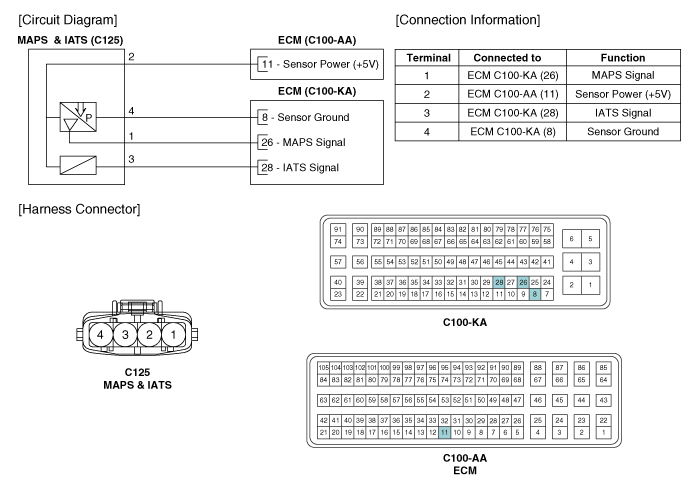

(A/T)

Intake Air Temperature Sensor (IATS) Specifications

Specification Temperature Resistance (kΩ) °C °F -40 -40 40.93 ~ 48.35 ...

Intake Air Temperature Sensor (IATS) Repair procedures

Inspection 1. Turn the ignition switch OFF. 2. Disconnect the IATS connector. 3. Measure resistance betwe ...
