Kia Carens RP (2013-2018) Service Manual / Body Electrical System / Windshield Wiper/Washer / Components and components location

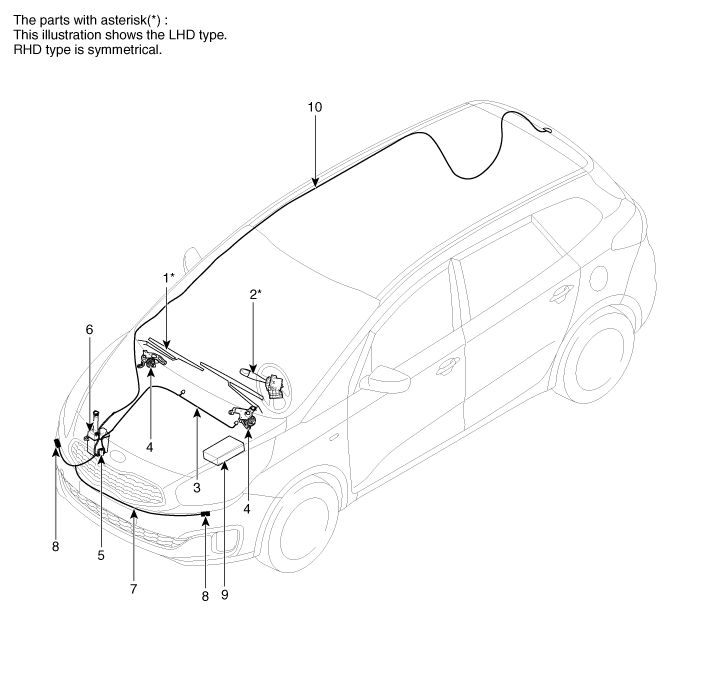

Component Location

1. Windshield wiper arm & blade
2. Wiper & washer switch (Front)
3. Windshield washer hose
4. Windshield wiper motor
5. Washer motor,

6. Washer reservoir
7. Head lamp washer hose
8. Head lamp washer nozzle
9. Front wiper relay (Engine room relay box)
10. Rear washer hose & nozzle

Description and operation

Description Front Wiper Safety Function 1. If snow prevents the operation of the passenger side wiper arm and blade. ; If the driver turns on the wiper ...
